Cross-section calculator

Select the thermal cross-section of an earthing conductor. Compare five materials, weight and cost.

01 / DESIGN PARAMETERS

Conductor operating conditions

One set of data for five materials.

Temperature before the fault occurs.
Used to calculate mass and cost.

This calculator is illustrative. All materials are calculated at once; click a card to see the details of one.

REQUIRED CROSS-SECTION: ALL MATERIALSAll within range
  • In the CBM range
  • In the CBM range

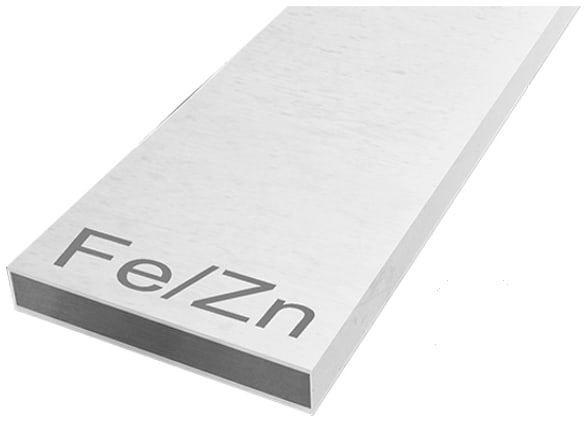

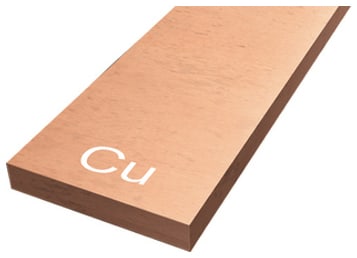

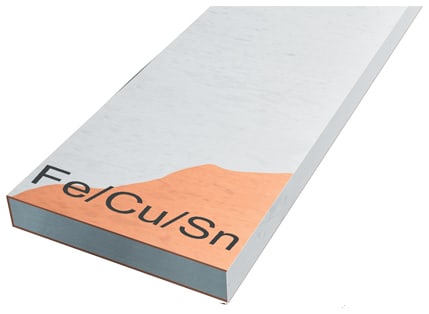

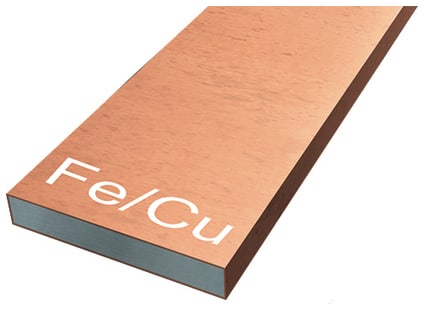

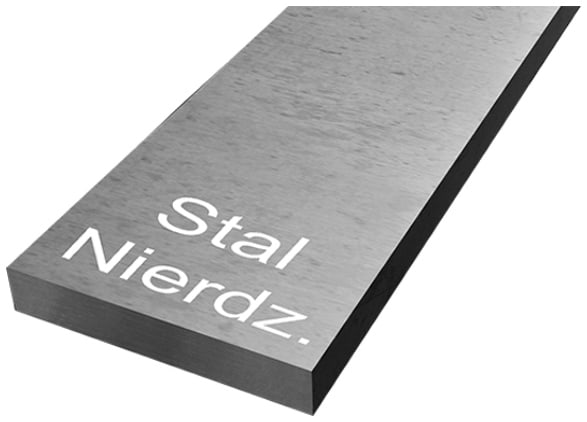

Photos: CBM graphic. Illustrative cross-sections at a common width scale; thickness and coating exaggerated. In red: material outside the CBM size table.
MINIMUM THERMAL CROSS-SECTION
155.26 mm²
Copper-bonded steel
Size from CBM table40.14 × 4.14 mmMass per metre1.30 kg/mMass for 100 m130.00 kg
MINIMUM CROSS-SECTION COMPARISON
A smaller thermal cross-section does not automatically mean the right choice for the installation.
02 / MATERIAL COMPARISON

Material and cost comparison

MaterialMin. thermal [mm²]Tape [mm]Mass [kg]Price [EUR/kg]Cost [EUR]
Copper-bonded steel155.2640.14 × 4.14130.00—
Tinned copper-bonded steel155.2640.14 × 4.14130.00—
Copper70.7625.13 × 3.1567.00—
Stainless steel 304302.5860.14 × 5.14240.00—
Hot-dip galvanized steel287.7960.14 × 5.14242.00—

Cost = length × mass per metre × your price per kilogram. Excludes labour and mark-ups. An empty price field means no costing; outside the table range no product is selected.

i

Illustrative calculator. Thermal calculation using the formula and constants from the CBM calculator; the formula accounts for the conductivity of the coating relative to copper. The selection covers the CBM size table; it does not account for additional mechanical or corrosion requirements or the connection method. The result is for preliminary calculations and must be checked in the design and by measurement. It does not confirm that the installation complies with standards.

Formula, material properties and scope

A = I / √[TCAP · 10⁻⁴ / (t · α · ρᵣ) · ln((K₀ + Tₘ) / (K₀ + Tₐ))]

I — fault current in kA, t — fault duration in seconds, A — cross-section in mm². We use the constants from CBM's working application (including ρᵣ = 9.67 for Fe/Cu and K₀ = 242 for Cu). Some values in their descriptive table differ from the code. For Cu, the reference to the previous column has been corrected: the numerator uses its own K₀, in line with the stated formula. Comparing all materials requires an initial temperature below 419°C. Scope of this tool: faults up to 5 s.

MaterialTCAPαρᵣK₀ [°C]Tₘ [°C]
Fe/Cu3.850.003789.672451084
Fe/Cu/Sn3.850.003789.672451084
Cu3.420.003811.782421084
INOX4.030.0013727491400
Fe/Zn3.930.003220.1293419

The size is selected without rounding the result down. Table limits are inclusive, and the actual width × thickness area must be at least equal to the thermal result. “Out of range” means the required cross-section exceeds the largest tape in the CBM table; we do not invent larger sizes.

CBM tables and documentation (in Polish)
