06 / CBM WELD

CBM Weld System

Moulds and materials for exothermic connections.

The CBM Weld exothermic connection is a durable and easy-to-make method of joining a copper-bonded vertical earth rod with a copper-bonded or copper-bonded/tinned tape. The copper weld adheres tightly to the joined elements without damaging the structure of the copper or tin coating. To make a durable connection, all you need is a reusable graphite mould, a mould handle, the powder that forms the weld, a clamp and a spark igniter or an electronic igniter.

The CBM Weld exothermic connection method can join various materials, such as copper, steel, copper-bonded steel, copper-bonded/tinned steel and galvanised steel. Because of the potential differences between these materials, remember that copper or copper-bonded elements should not be joined with galvanised steel and placed in the ground, as galvanic corrosion may occur.

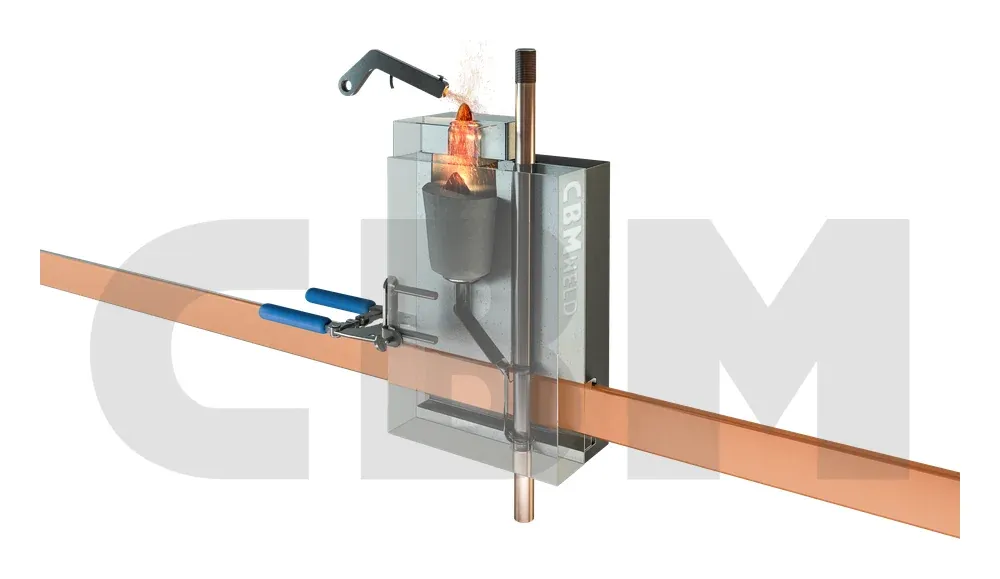

CBM Weld graphite mould during welding of a vertical earth rod to a tape: ignited powder in the mould chamber

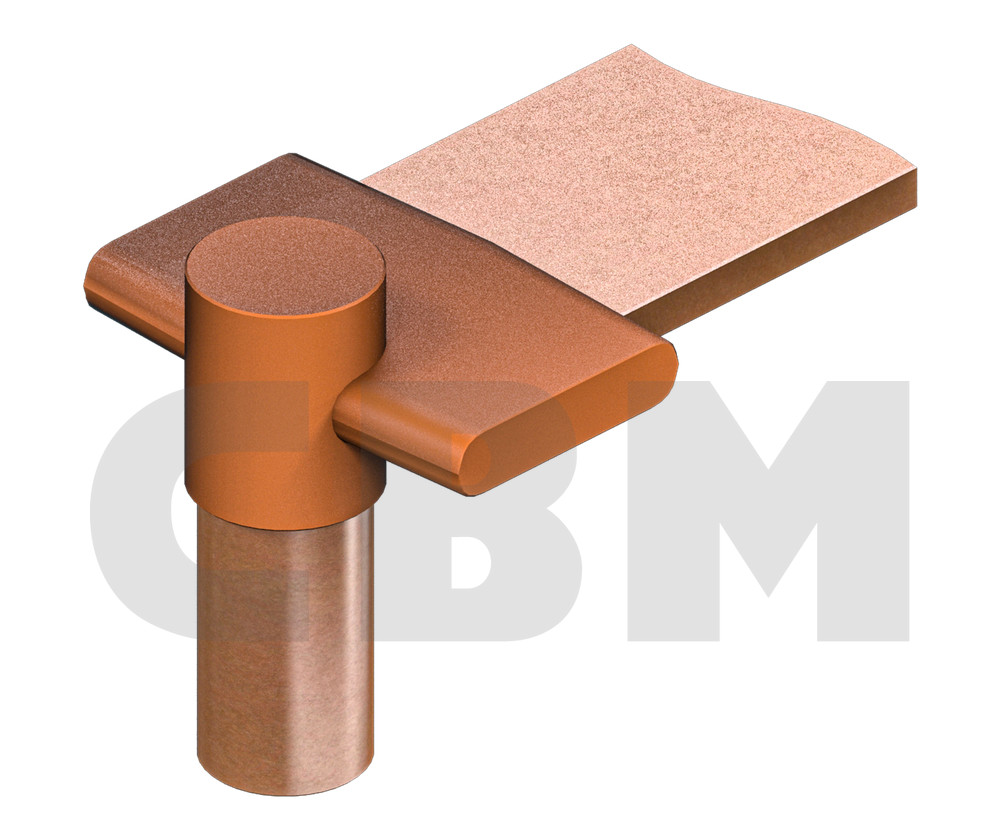

Earth rod to tape connection, group: C-UP-A

Vertical earth rod to horizontal tape, end connection

Earth rod to tape connection, group: C-UP-B

Vertical earth rod to horizontal tape, transition connection

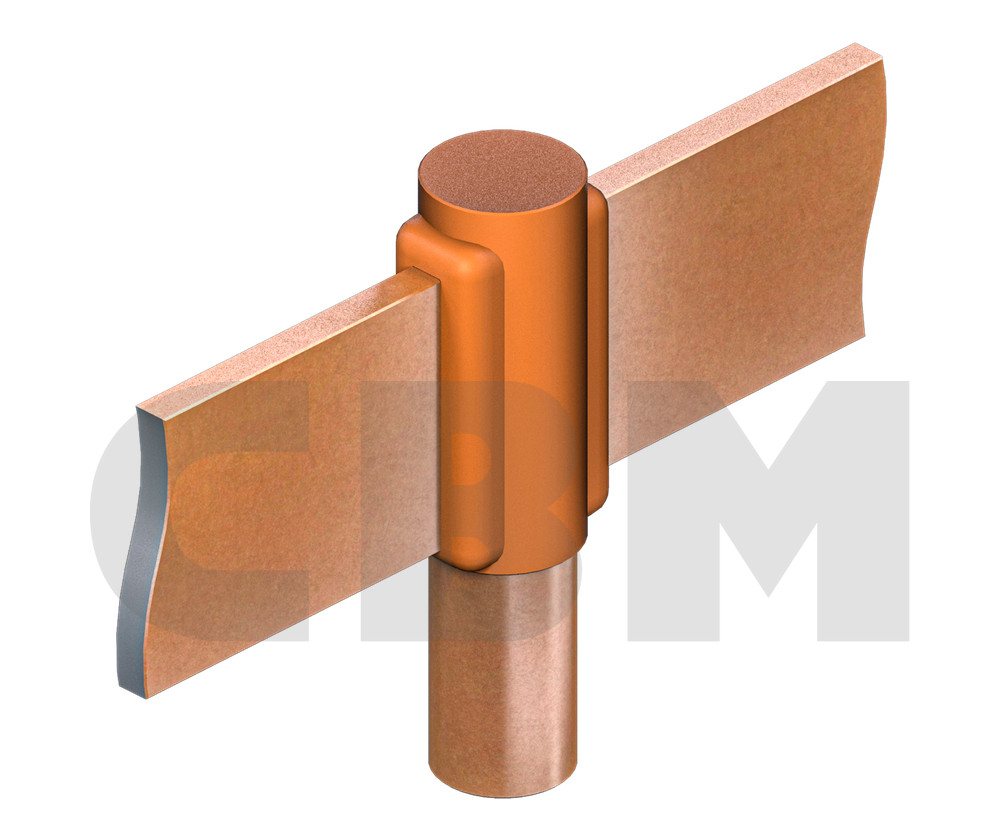

Earth rod to tape connection, group: C-UP-C

Vertical earth rod to vertical tape, transition connection, tape cut off

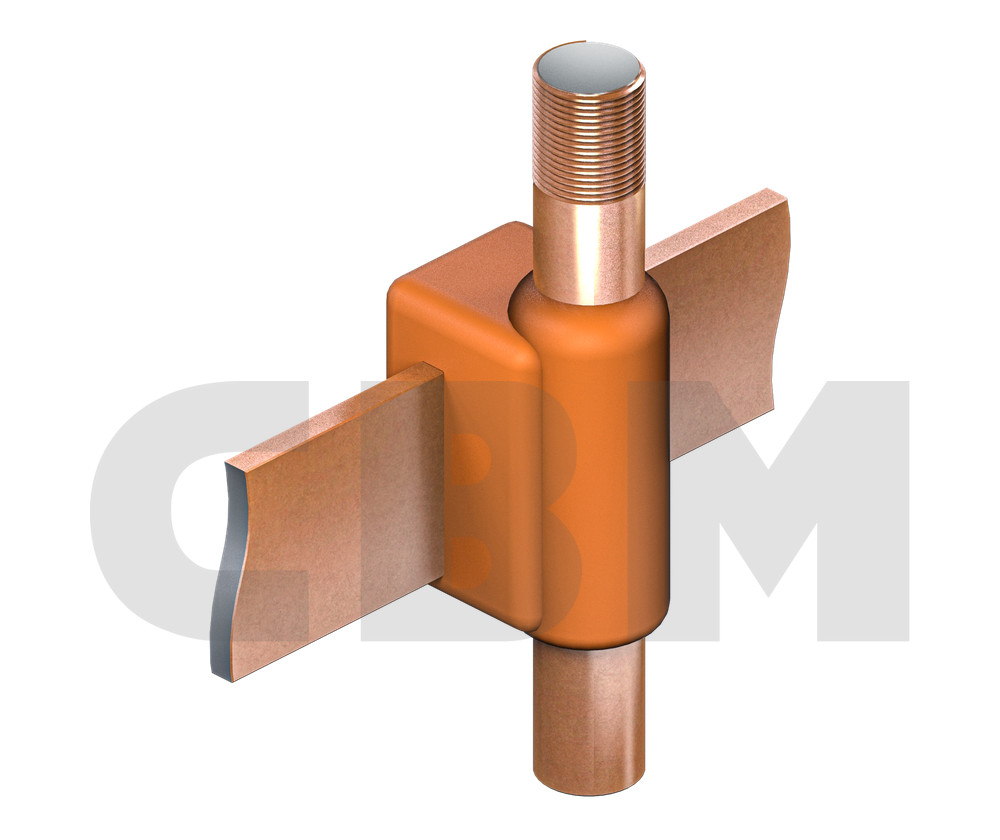

Earth rod to tape connection, group: C-UP-D

Vertical earth rod to vertical tape, transition connection below the thread

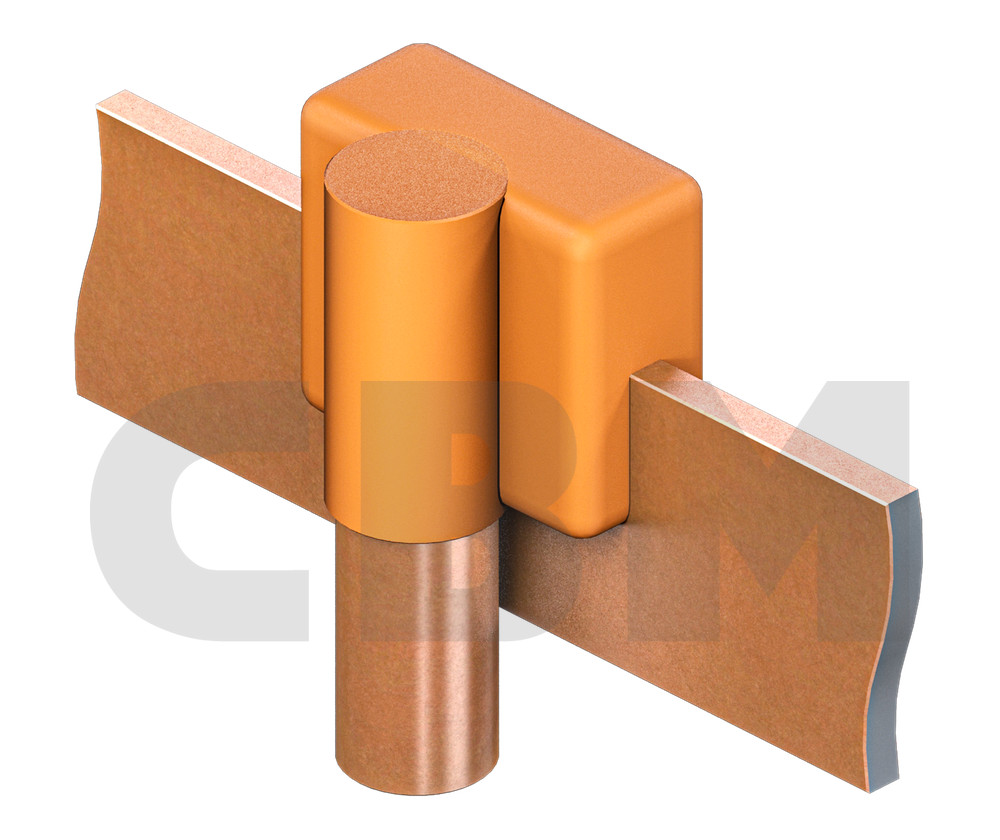

Earth rod to tape connection, group: C-UP-E

Vertical earth rod to vertical tape, transition connection on the thread

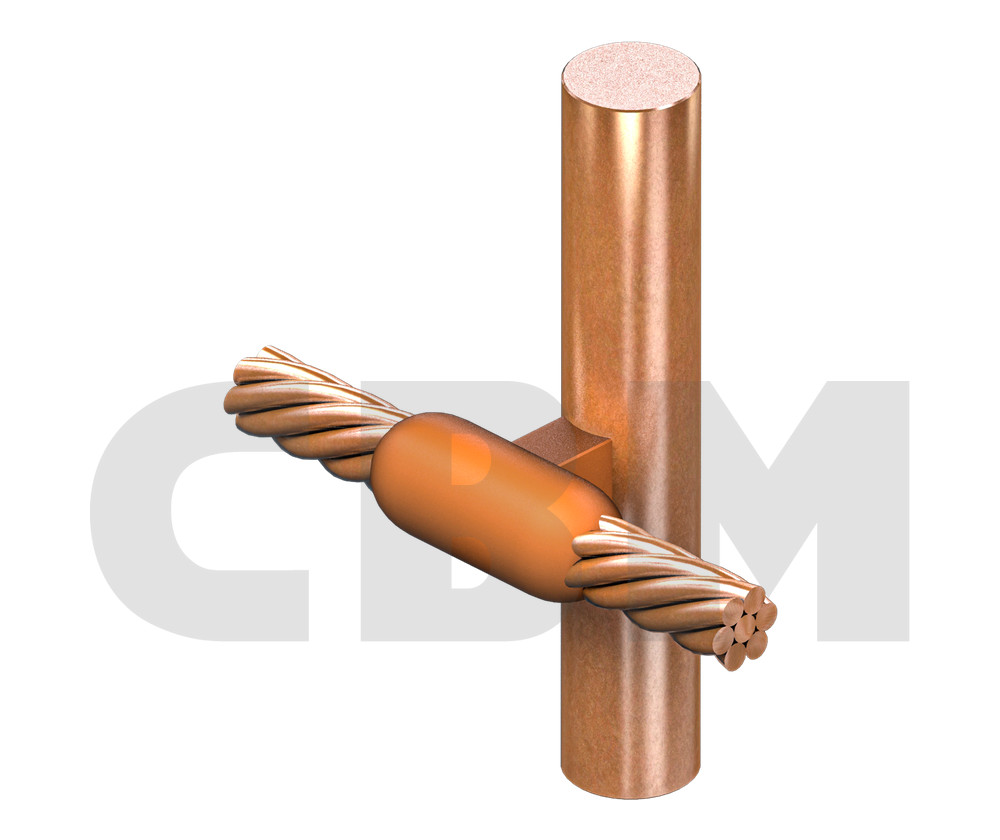

Earth rod to wire/stranded wire connection, group: C-UD-A

Vertical earth rod to horizontal wire, point transition connection

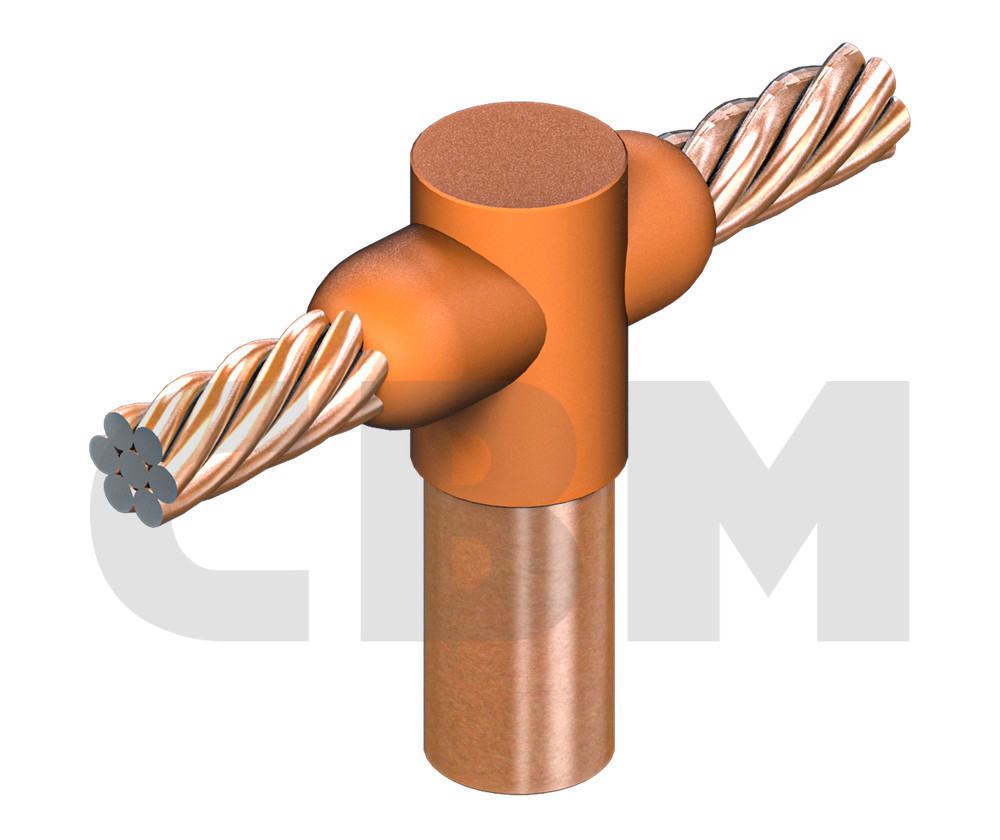

Earth rod to wire/stranded wire connection, group: C-UD-B

Vertical earth rod to cut horizontal wire, transition connection

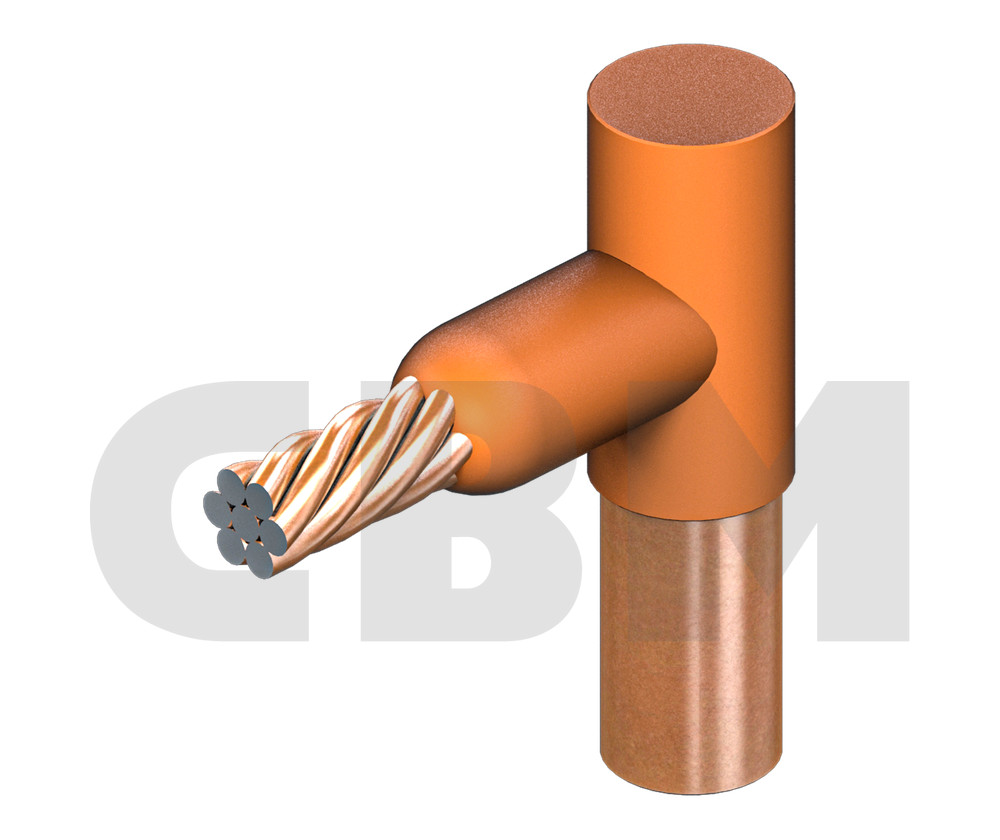

Earth rod to wire/stranded wire connection, group: C-UD-C

Vertical earth rod to horizontal wire, end connection

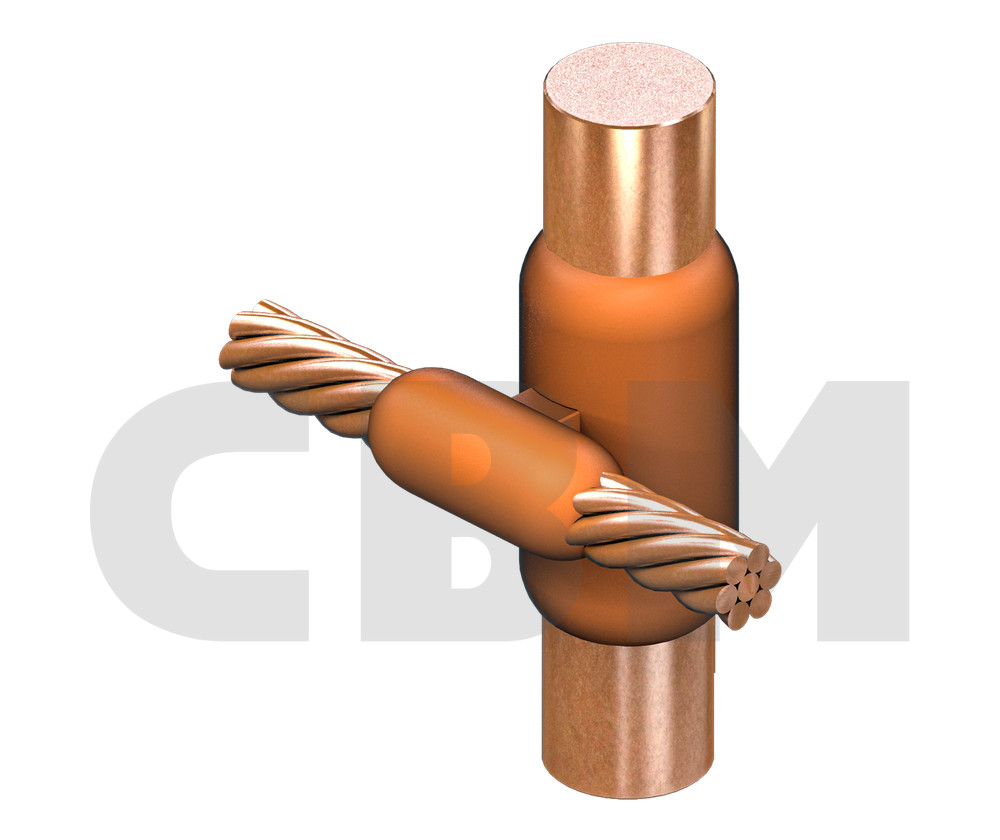

Earth rod to wire/stranded wire connection, group: C-UD-D

Vertical earth rod to horizontal wire, full contact, transition connection

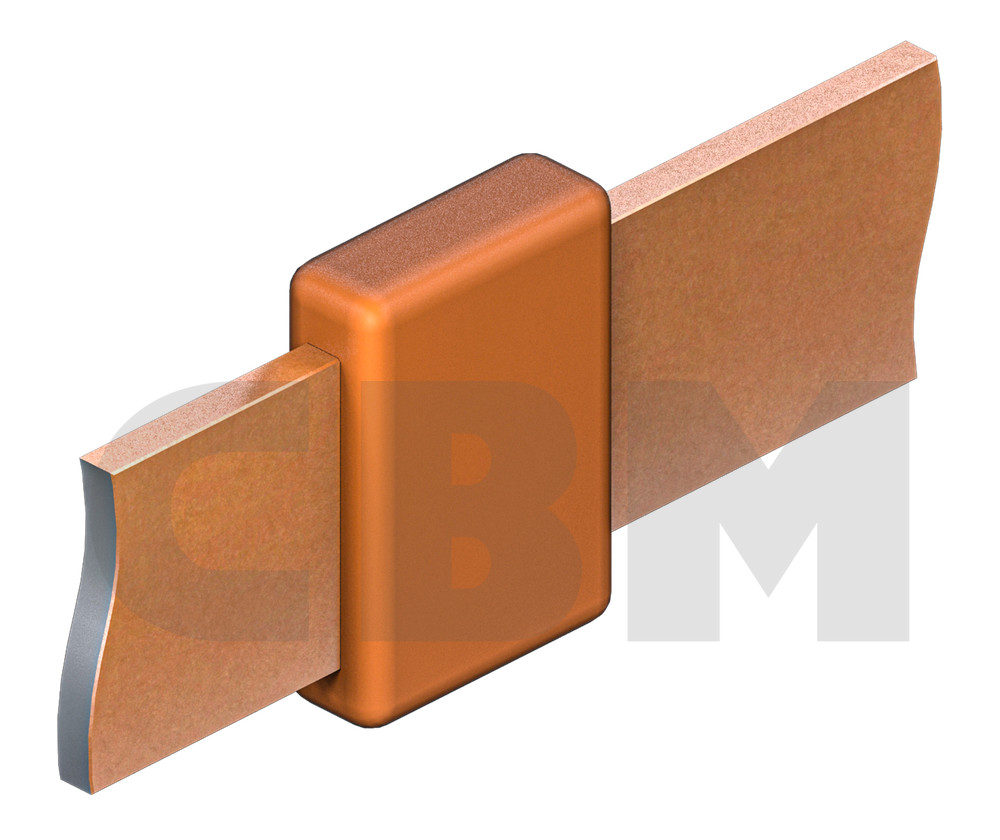

Tape to tape connection, group: C-PP-A

Vertical tape to vertical tape, forefront connection

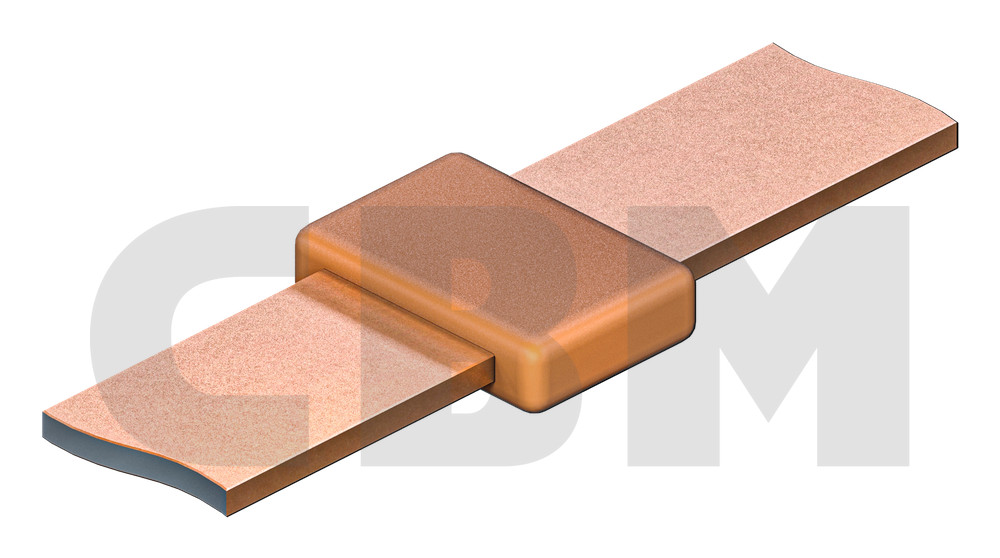

Tape to tape connection, group: C-PP-B

Horizontal tape to horizontal tape, forefront connection

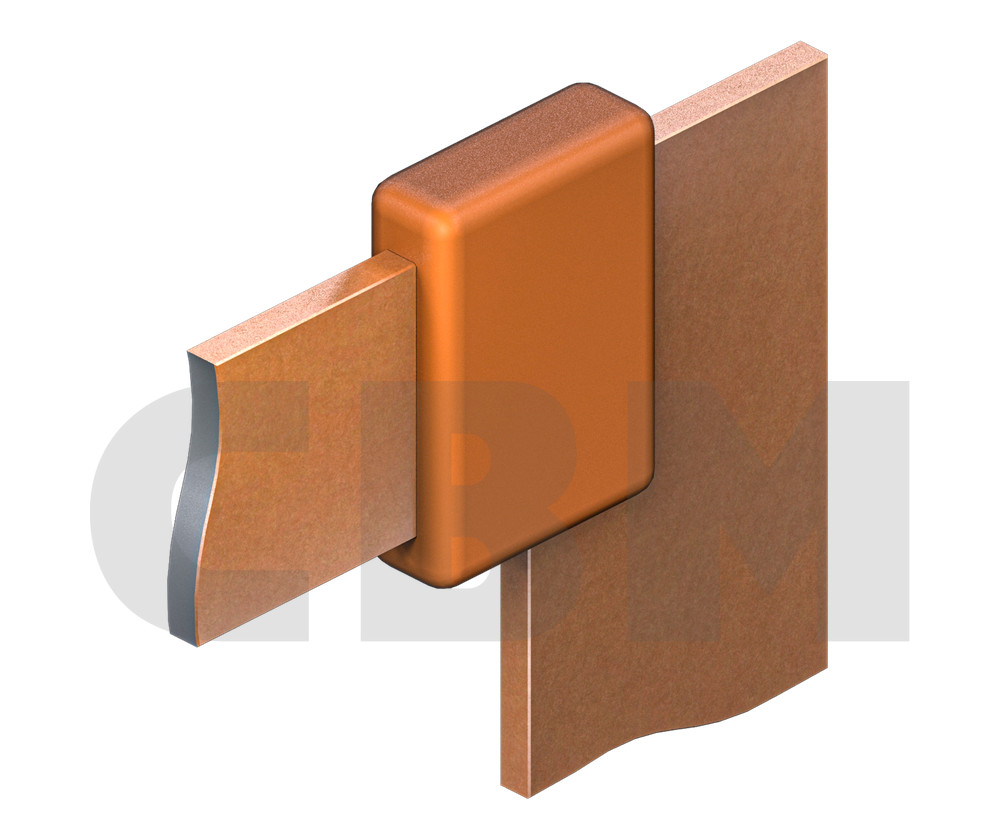

Tape to tape connection, group: C-PP-C

Vertical tape to vertical tape, end connection

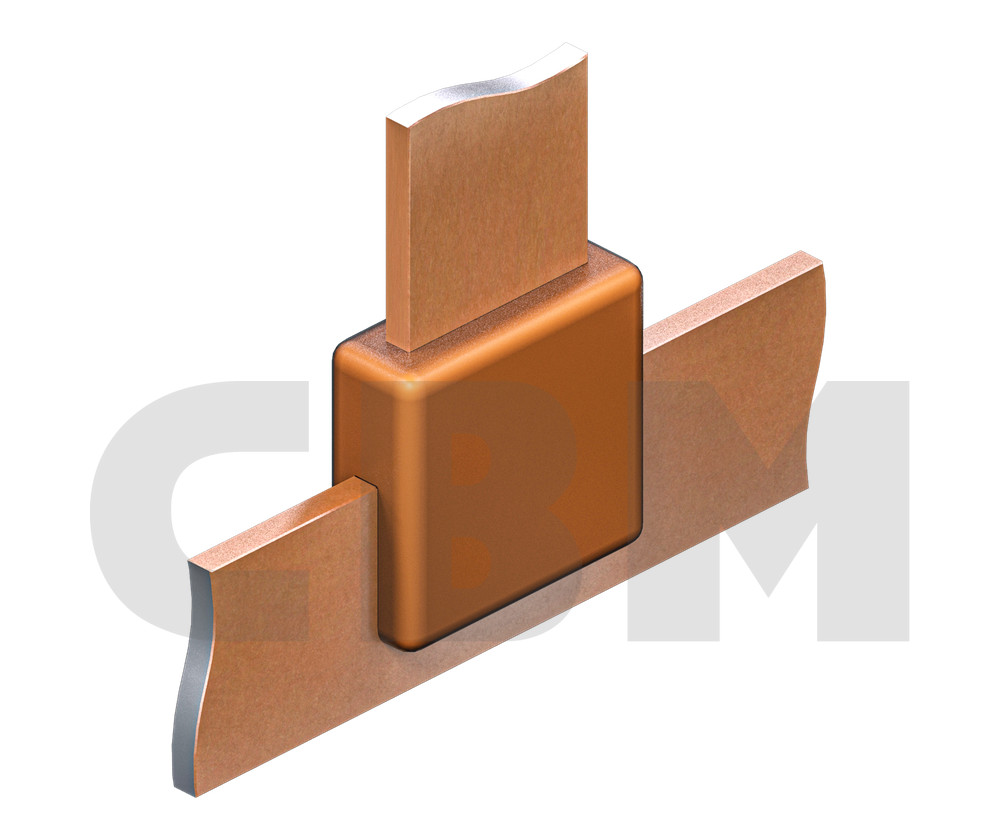

Tape to tape connection, group: C-PP-D

Vertical tape to vertical tape, T connection from above

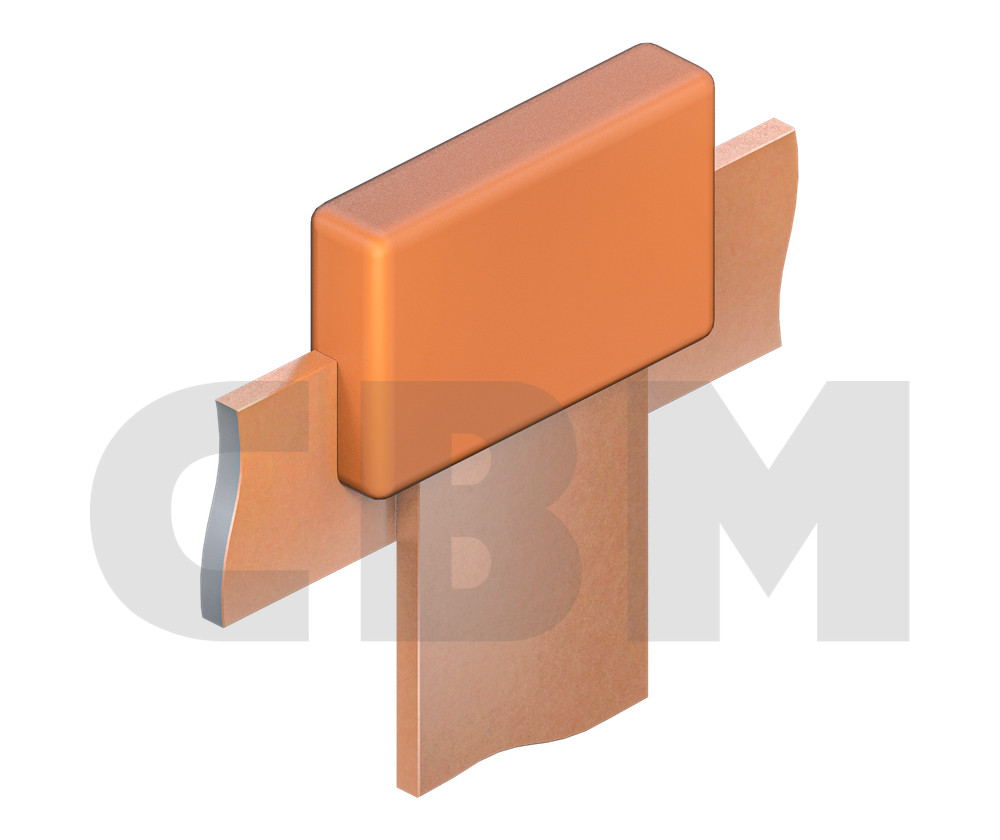

Tape to tape connection, group: C-PP-E

Vertical tape to vertical tape, T connection from below

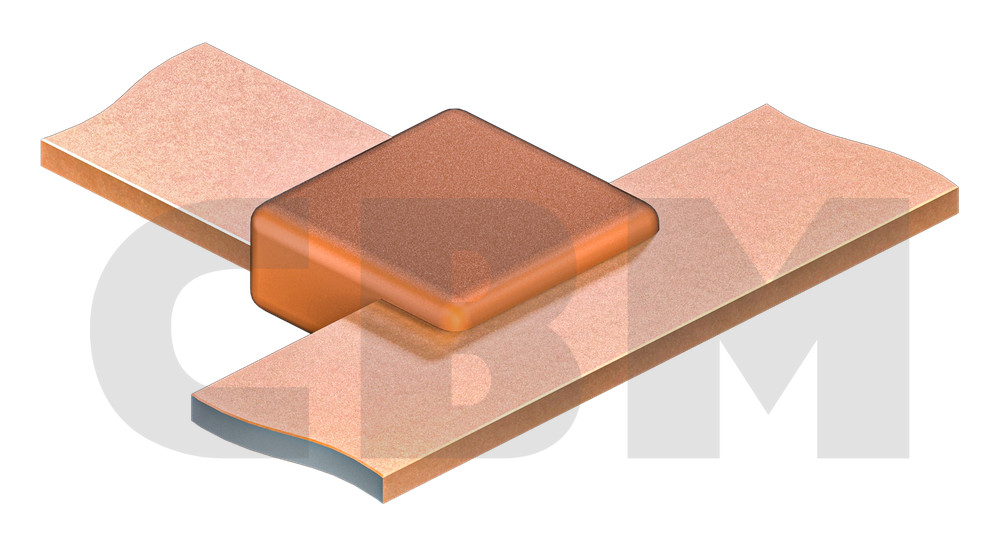

Tape to tape connection, group: C-PP-F

Horizontal tape to horizontal tape, T connection

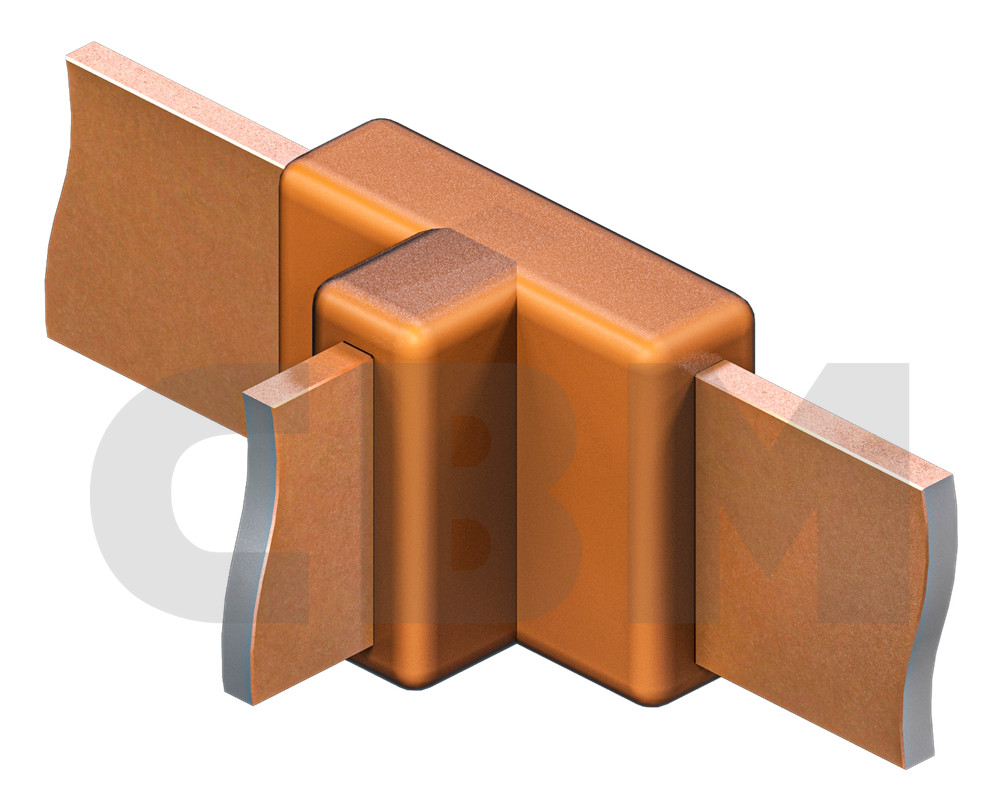

Tape to tape connection, group: C-PP-G

Vertical tape to vertical tape, T connection

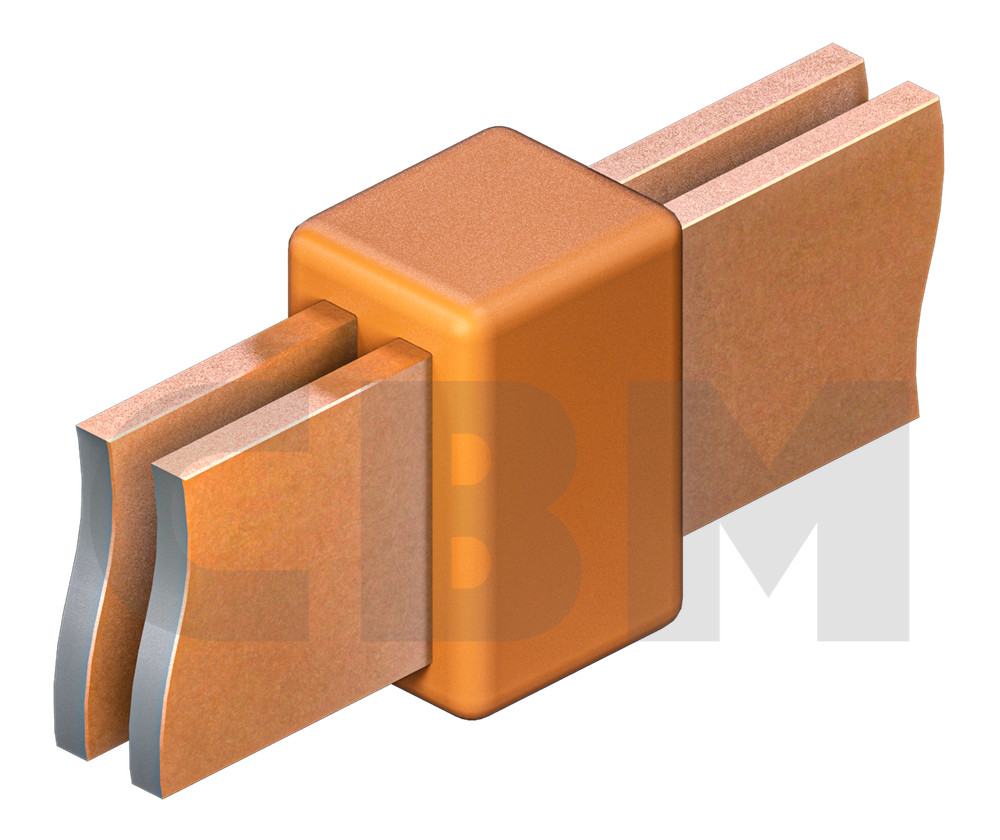

Tape to tape connection, group: C-PP-H

Vertical tape to vertical tape, parallel connection

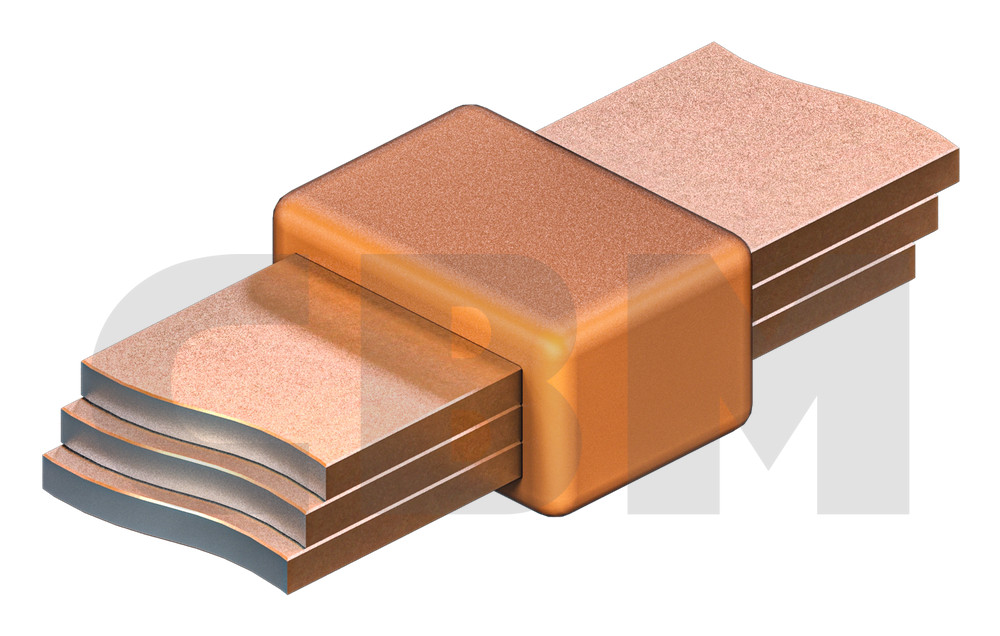

Tape to tape connection, group: C-PP-I

Horizontal tape to horizontal tape, parallel connection

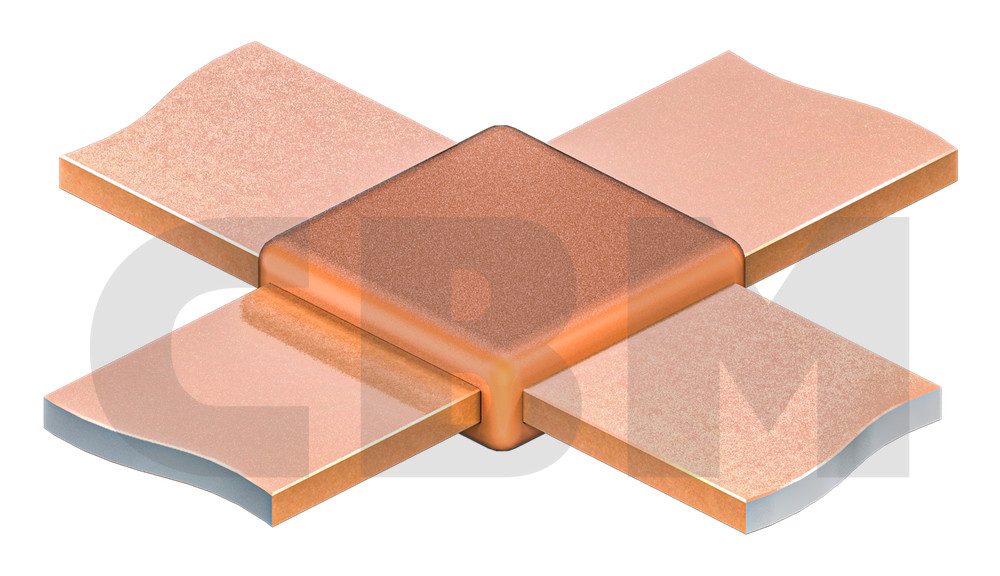

Tape to tape connection, group: C-PP-J

Horizontal tape to cut horizontal tape, X type cross connection

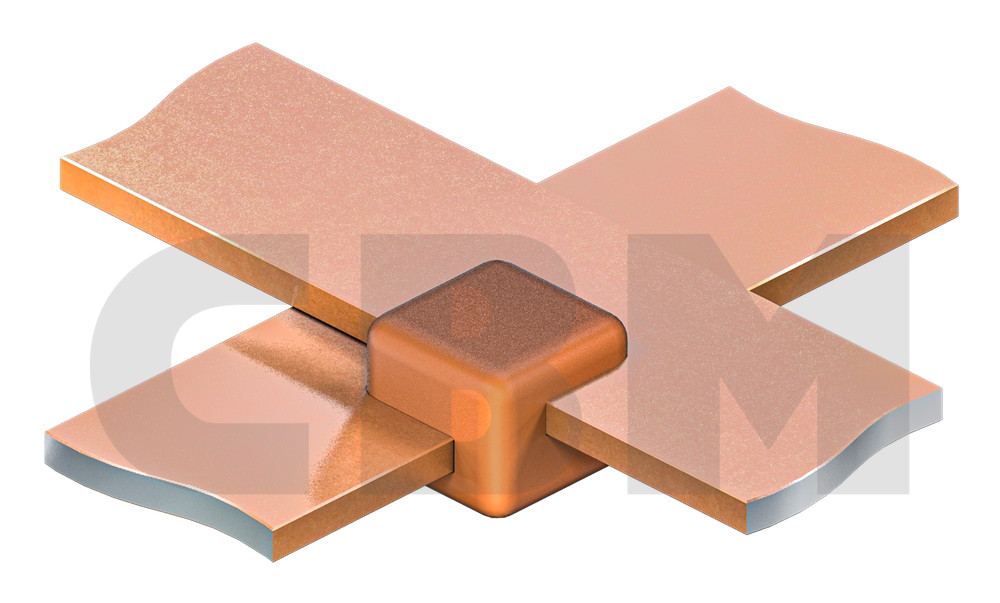

Tape to tape connection, group: C-PP-K

Horizontal tape to horizontal tape (tapes not cut), X type cross connection, point contact, corner

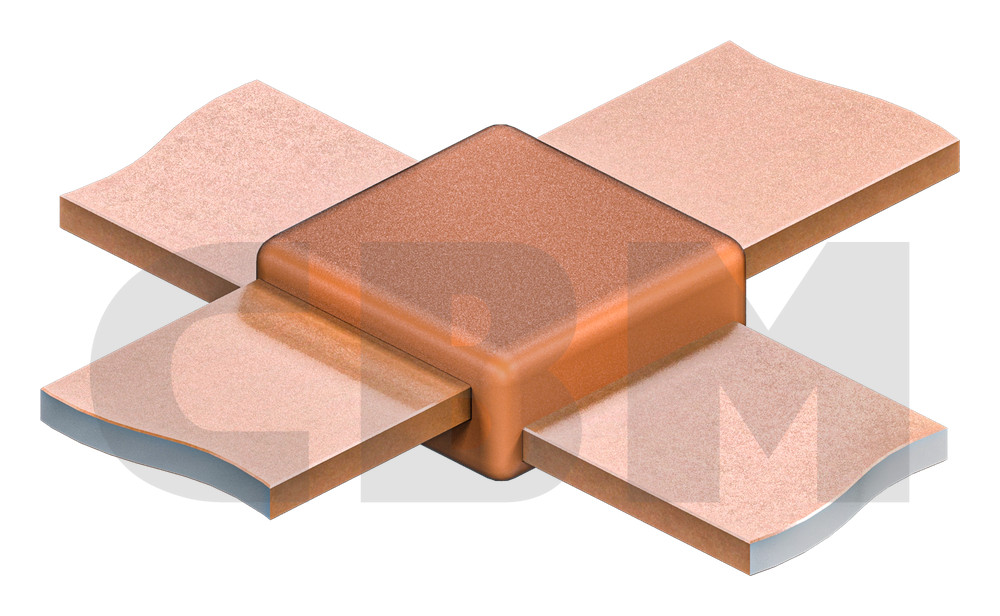

Tape to tape connection, group: C-PP-L

Horizontal tape to horizontal tape (tapes not cut), full X type cross connection

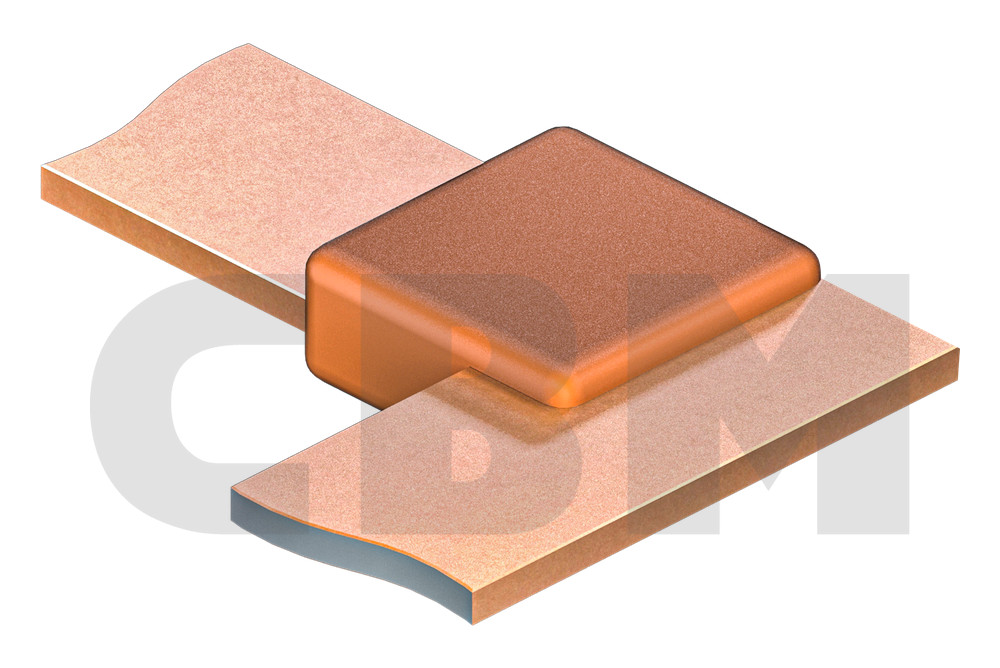

Tape to tape connection, group: C-PP-O

Horizontal tape to horizontal tape, L type end connection

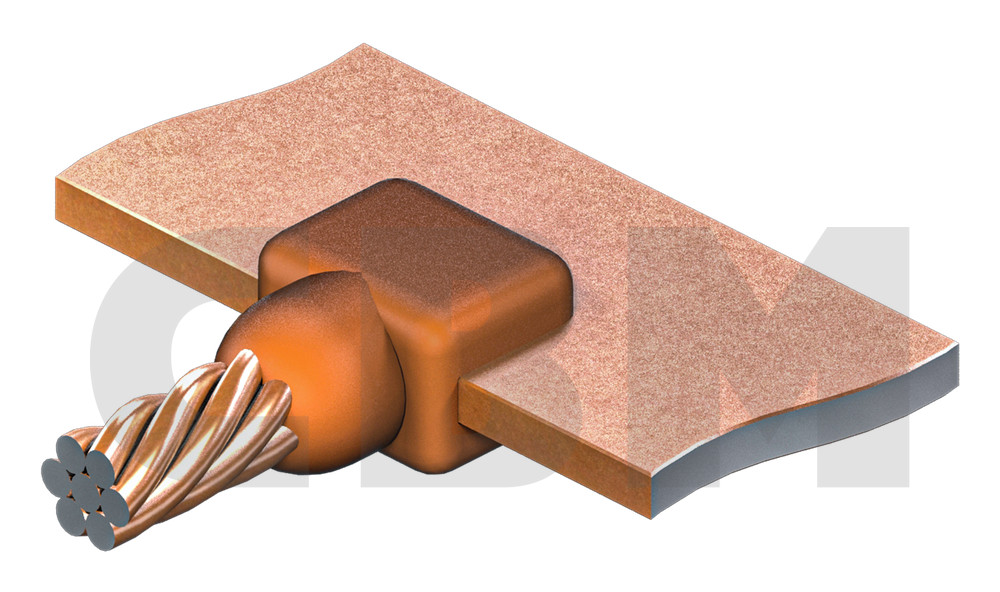

Tape to wire/stranded wire connection, group: C-PD-A

Horizontal tape to wire/stranded wire, T connection, wire joined to the tape

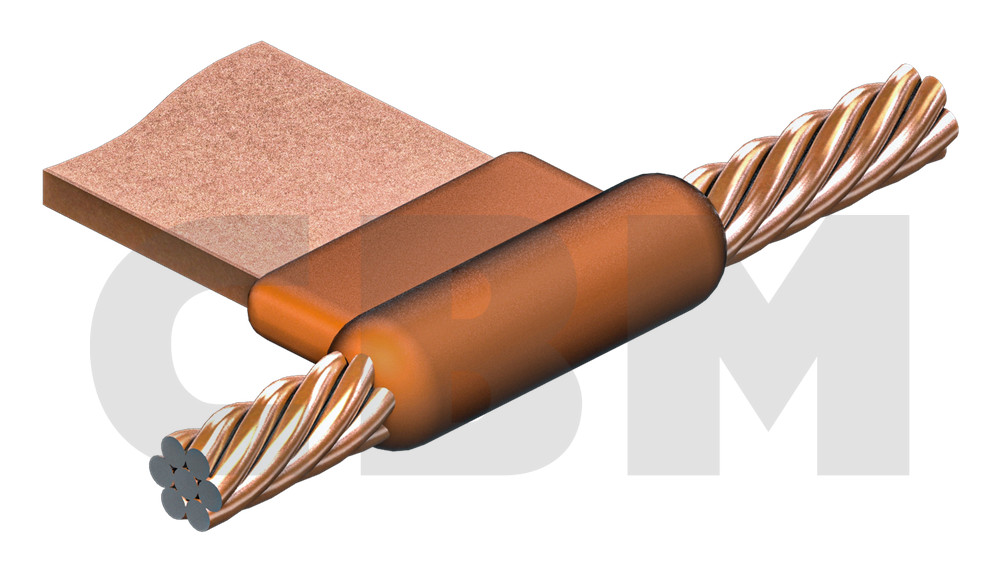

Tape to wire/stranded wire connection, group: C-PD-B

Horizontal tape to wire/stranded wire, T connection, tape joined to the wire

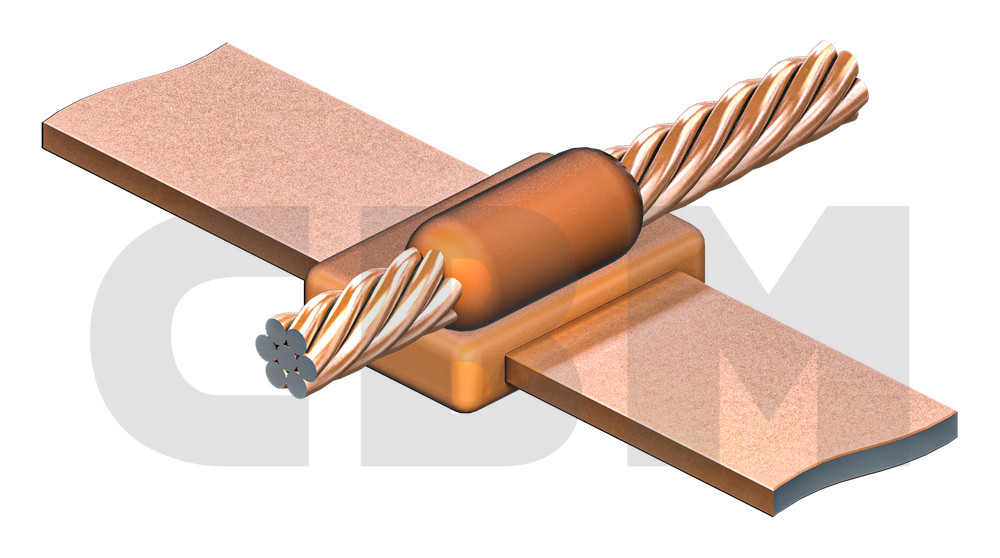

Tape to wire/stranded wire connection, group: C-PD-F

Horizontal tape to horizontal wire/stranded wire, full X type cross connection, tape and stranded wire not cut

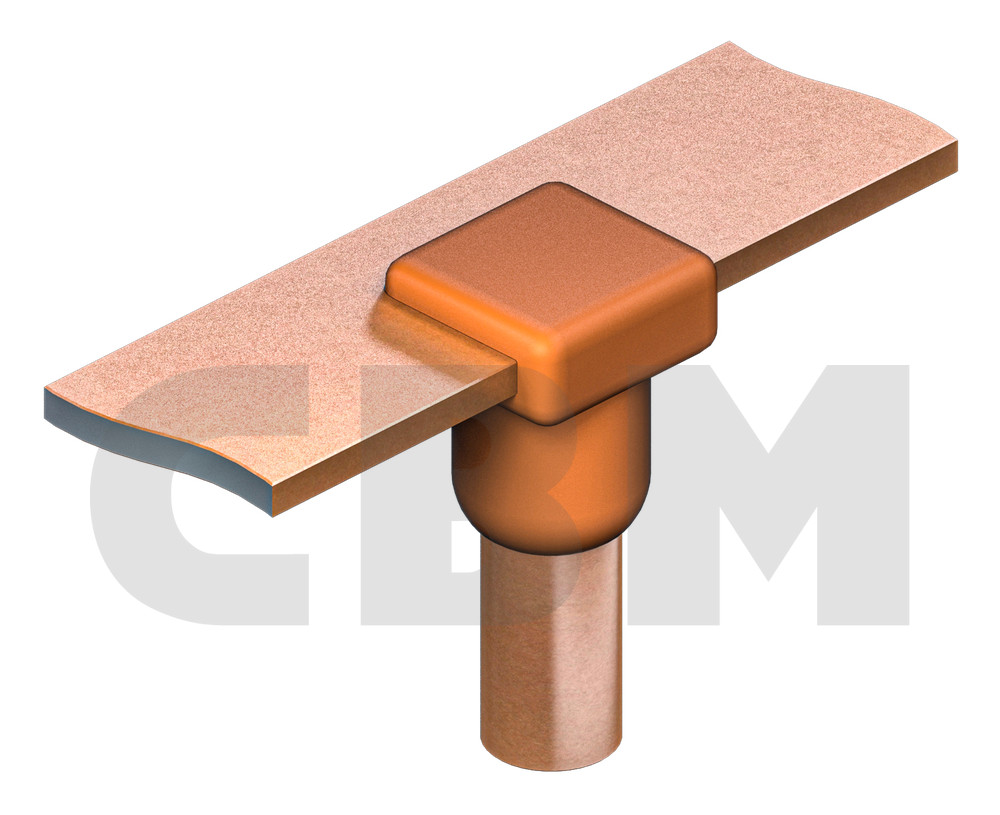

Tape to wire/stranded wire connection, group: C-PD-G

Horizontal tape to vertical wire/stranded wire, transition connection

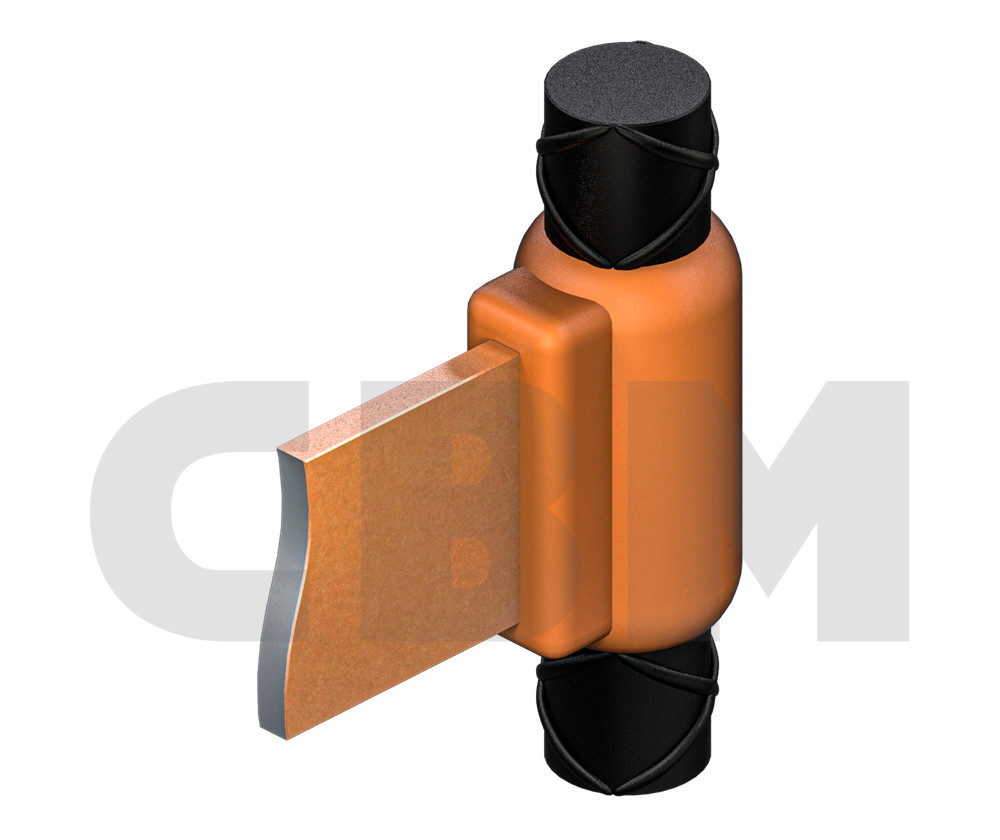

Tape to ribbed bar, group: C-PZ-A

Vertical tape to vertical ribbed bar, T type connection

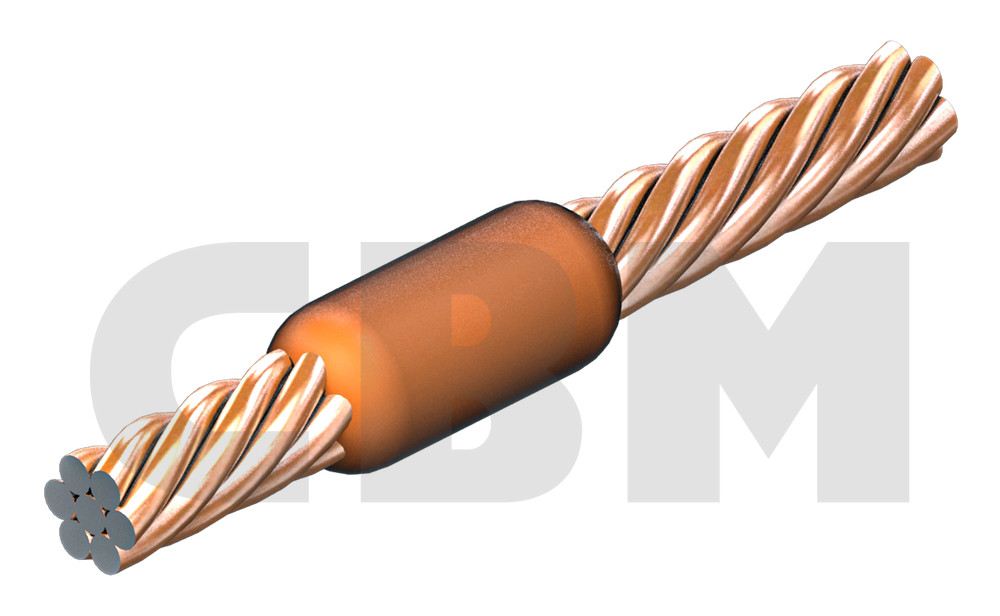

Wire/stranded wire to wire/stranded wire connection, group: C-DD-A

Horizontal wire/stranded wire to horizontal wire/stranded wire, forefront connection

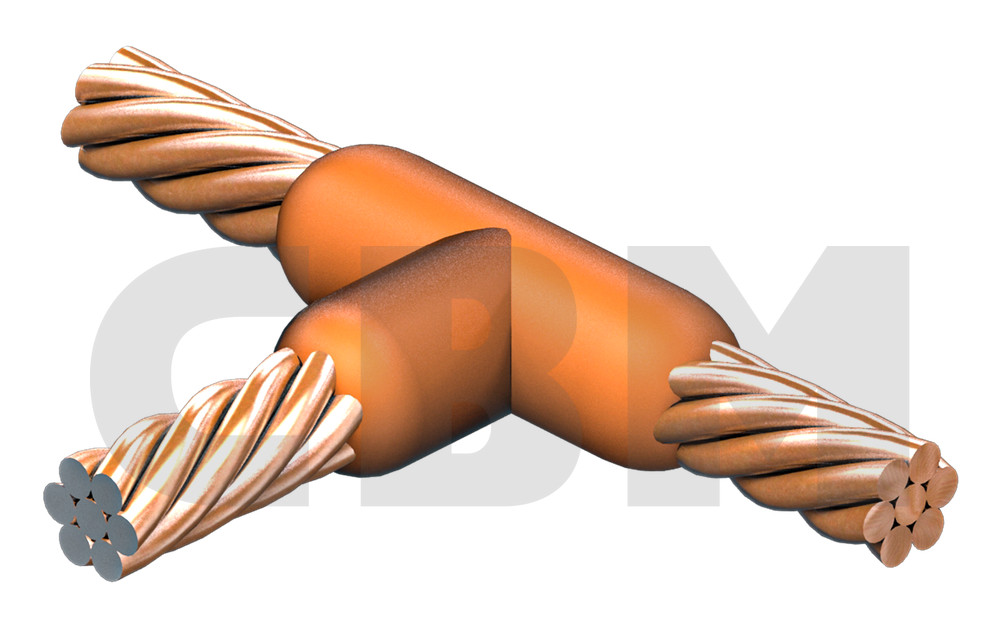

Wire/stranded wire to wire/stranded wire connection, group: C-DD-C

Horizontal wire/stranded wire to horizontal wire/stranded wire, T connection

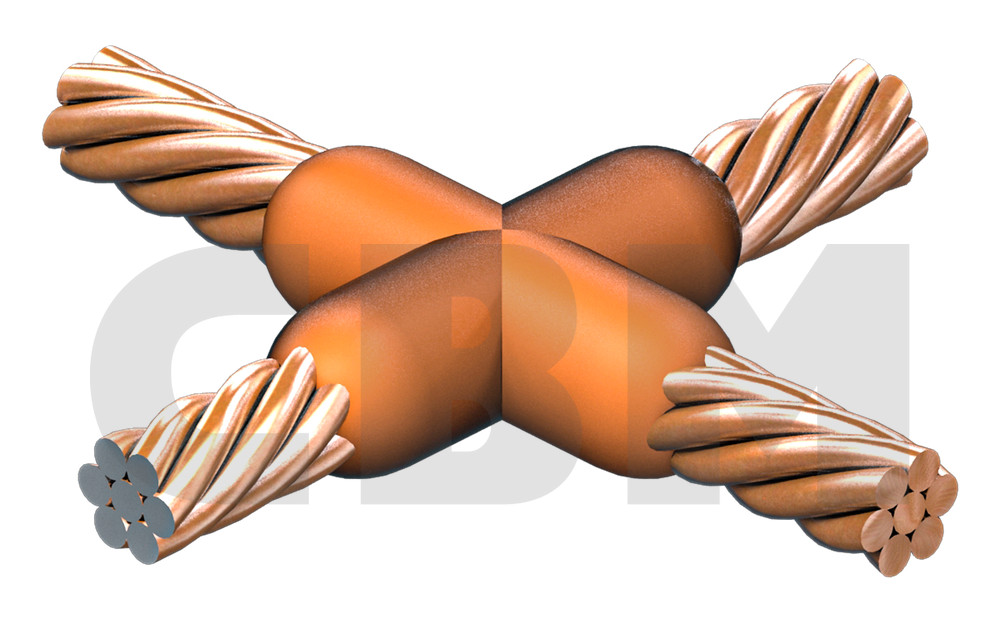

Wire/stranded wire to wire/stranded wire connection, group: C-DD-E

Horizontal wire/stranded wire to horizontal wire/stranded wire, wire cut, X type cross connection

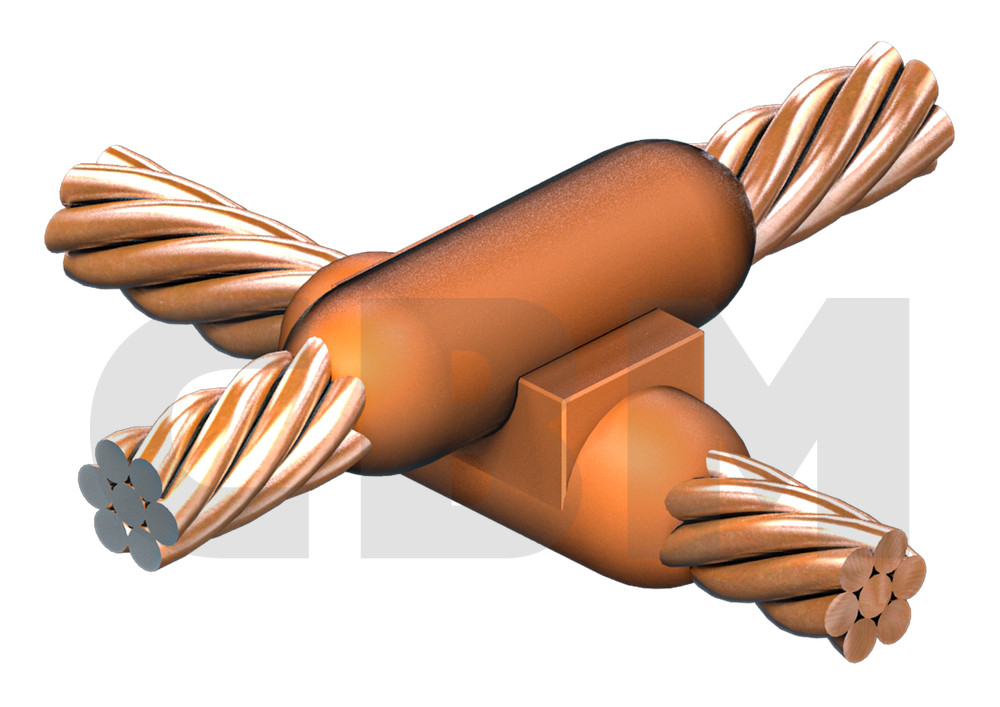

Wire/stranded wire to wire/stranded wire connection, group: C-DD-F

Horizontal wire/stranded wire to horizontal wire/stranded wire, wire not cut, X type cross connection

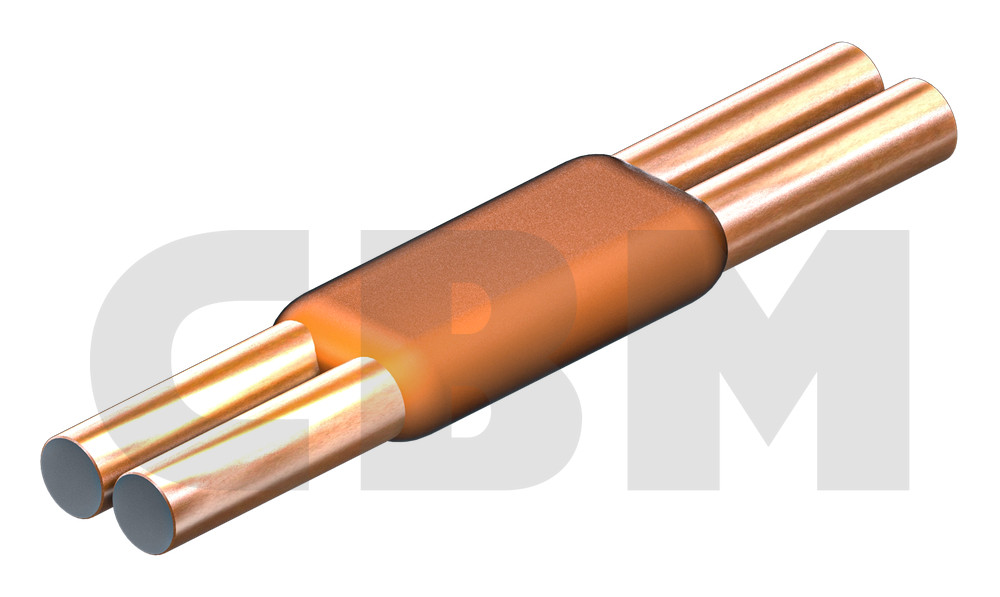

Wire/stranded wire to wire/stranded wire connection, group: C-DD-G

Horizontal wire/stranded wire to horizontal wire/stranded wire, parallel connection

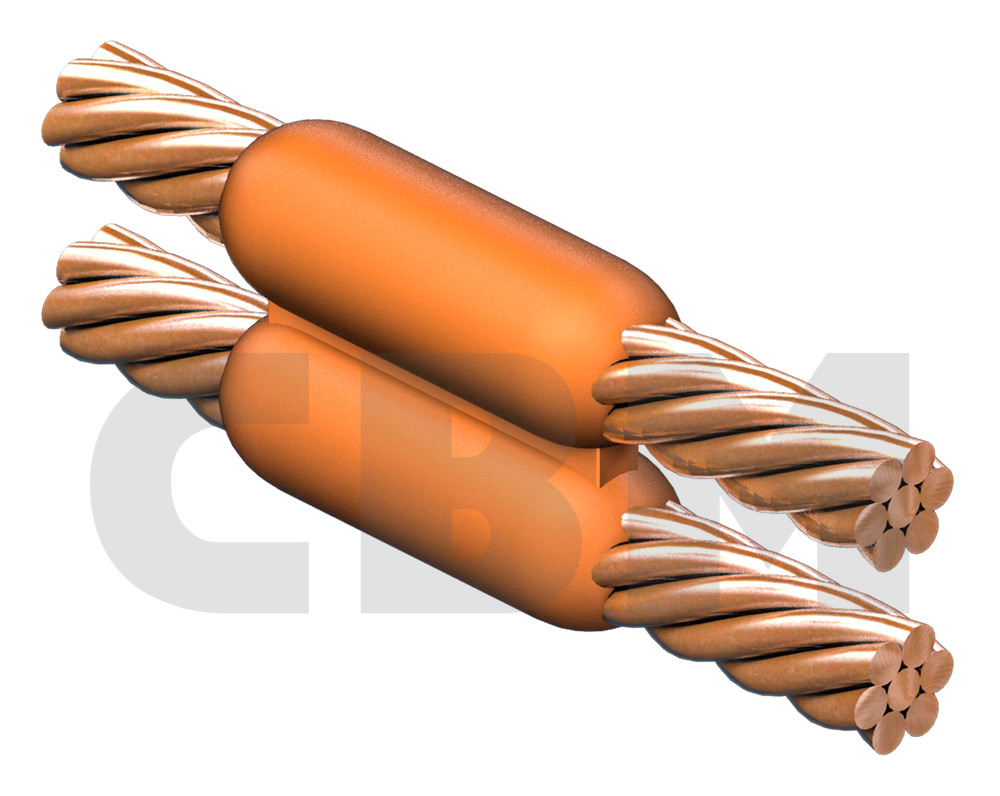

Wire/stranded wire to wire/stranded wire connection, group: C-DD-H

Vertical wire/stranded wire to vertical wire/stranded wire, parallel connection

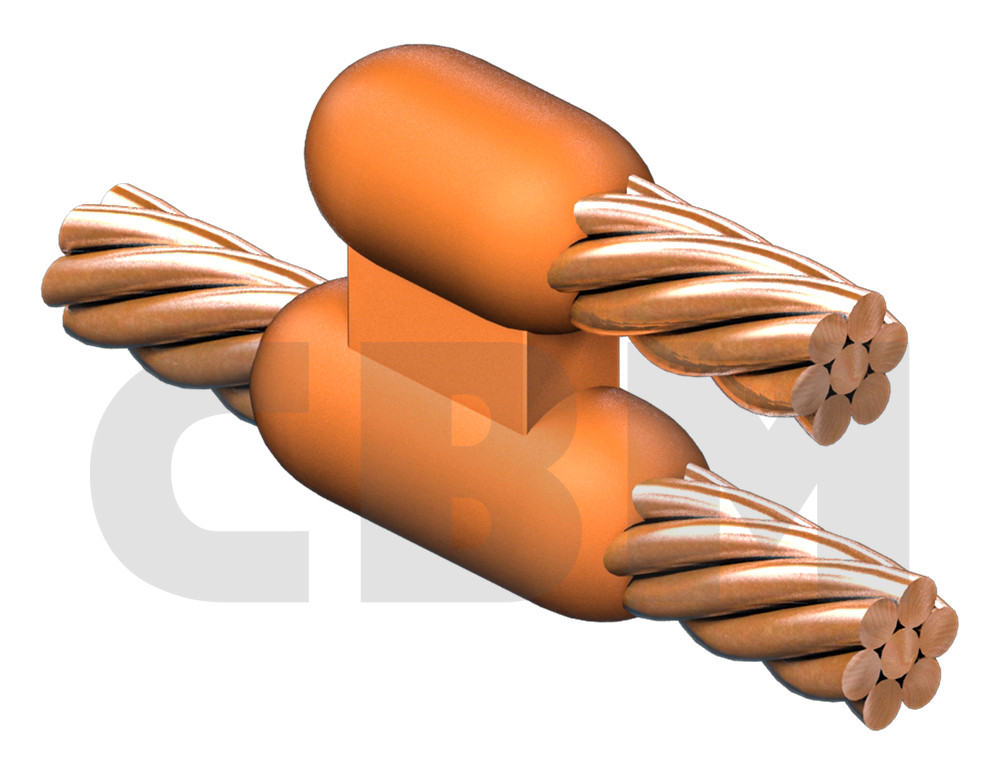

Wire/stranded wire to wire/stranded wire connection, group: C-DD-I

Vertical wire/stranded wire to vertical wire/stranded wire, parallel, end connection

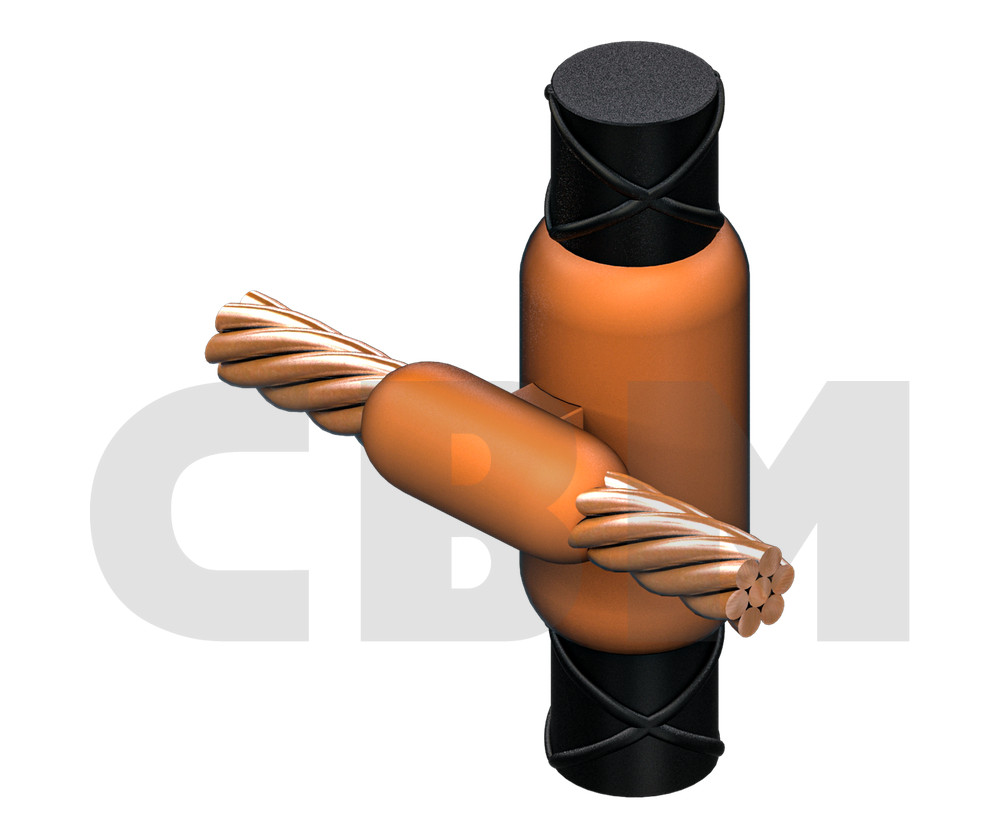

Wire/stranded wire to ribbed bar, group: C-DZ-A

Horizontal wire/stranded wire to vertical ribbed bar, full transition connection

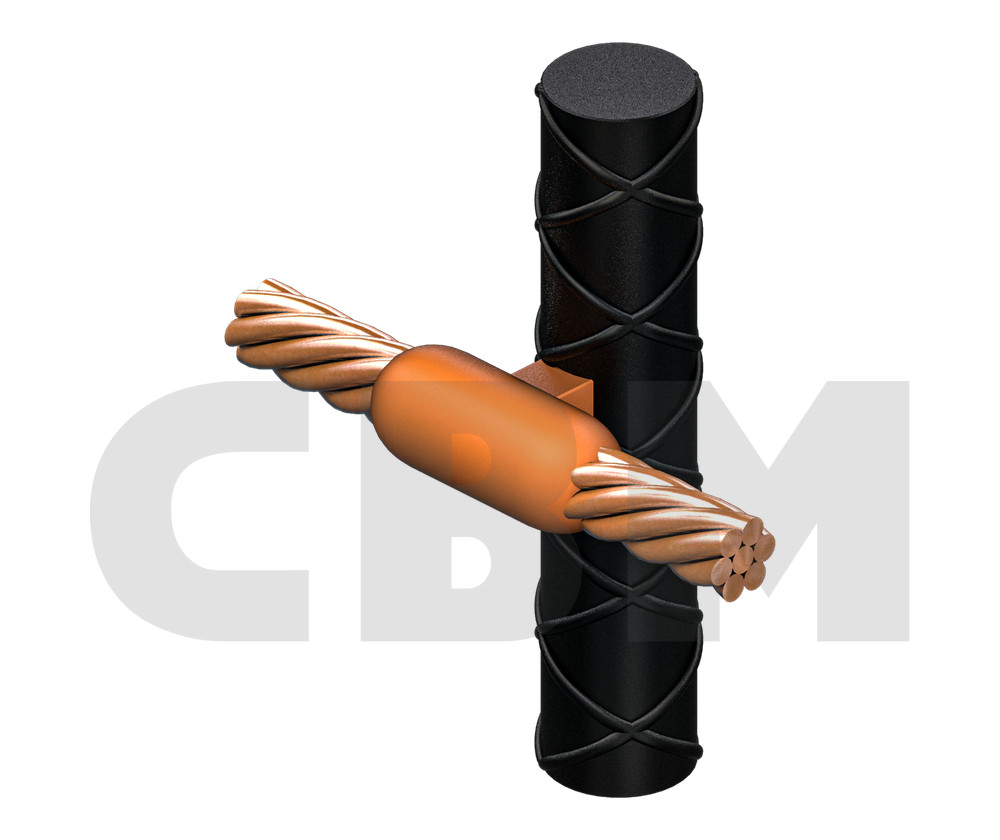

Wire/stranded wire to ribbed bar, group: C-DZ-B

Horizontal wire/stranded wire to vertical ribbed bar, point transition connection

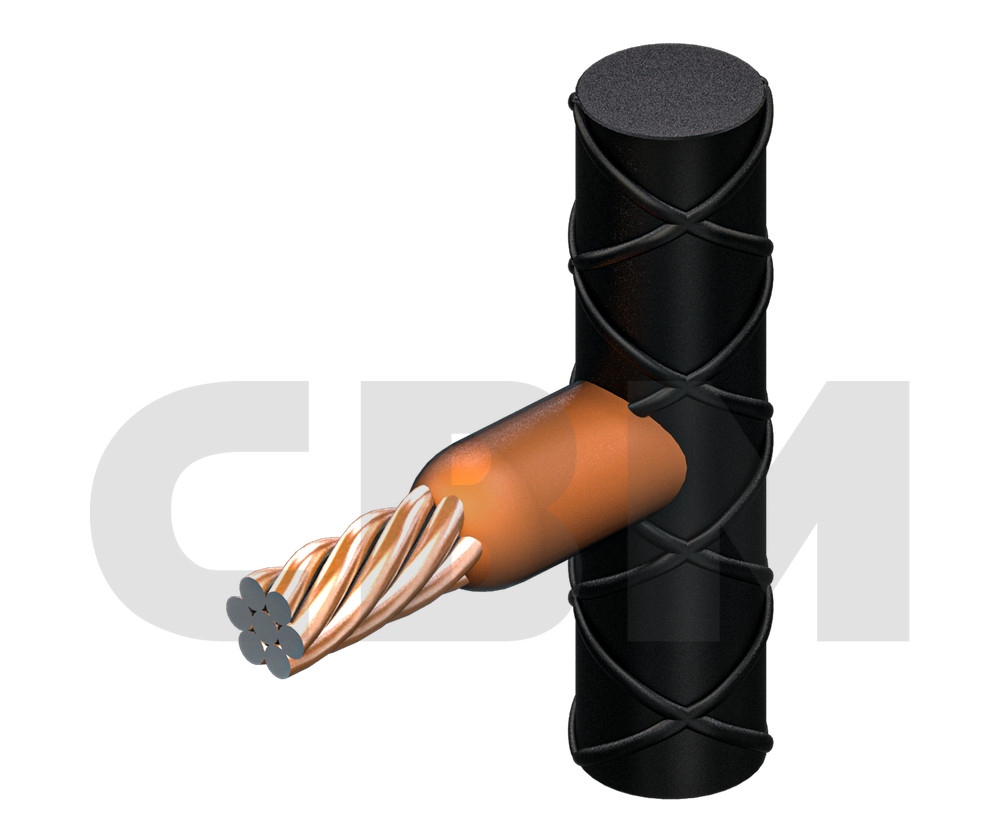

Wire/stranded wire to ribbed bar, group: C-DZ-C

Horizontal wire/stranded wire to vertical ribbed bar, end point connection

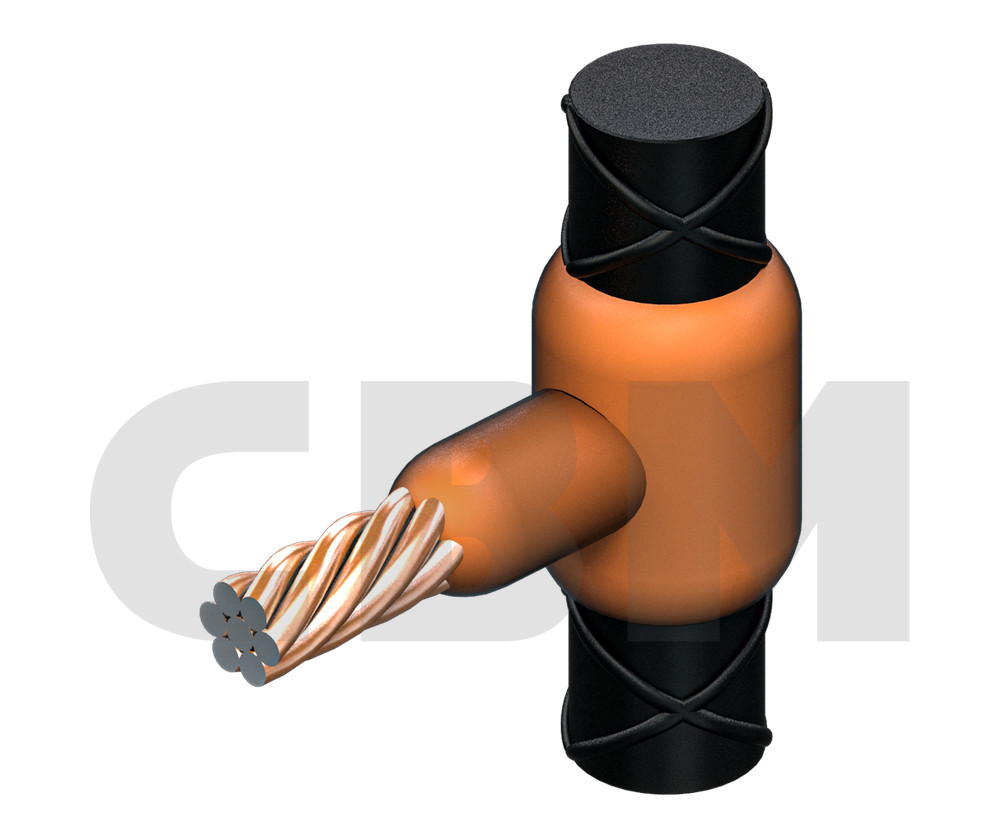

Wire/stranded wire to ribbed bar, group: C-DZ-D

Horizontal wire/stranded wire to vertical ribbed bar, end full connection

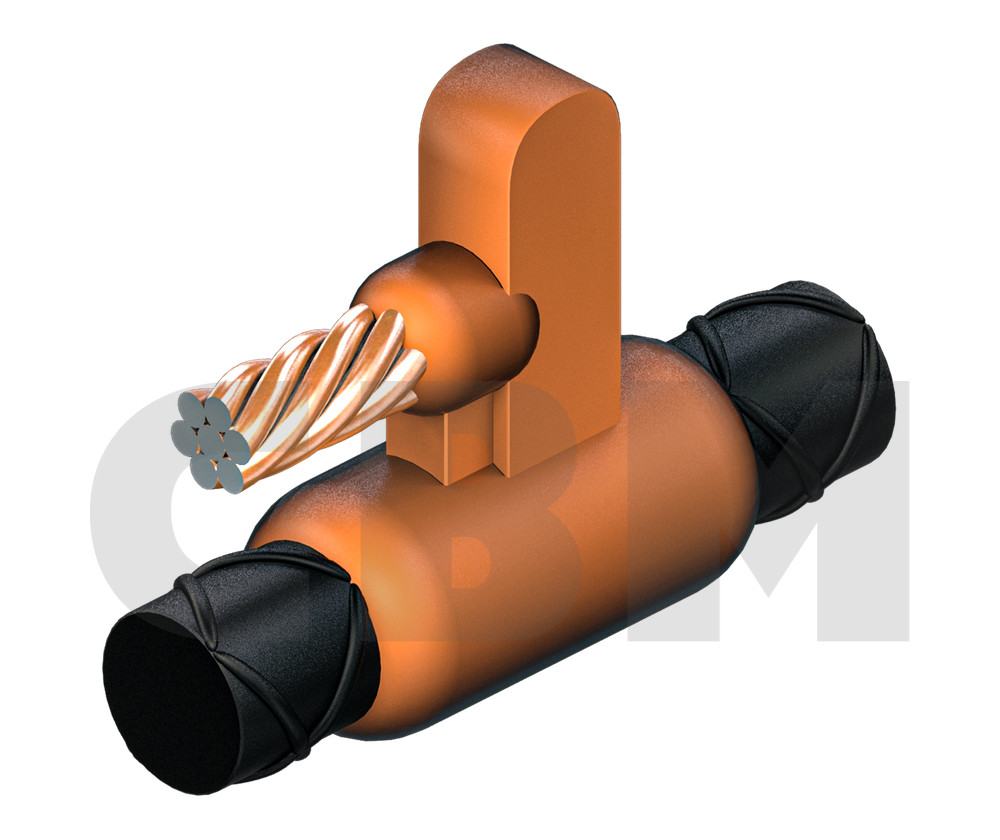

Wire/stranded wire to ribbed bar, group: C-DZ-E

Horizontal wire/stranded wire to horizontal ribbed bar, end full connection

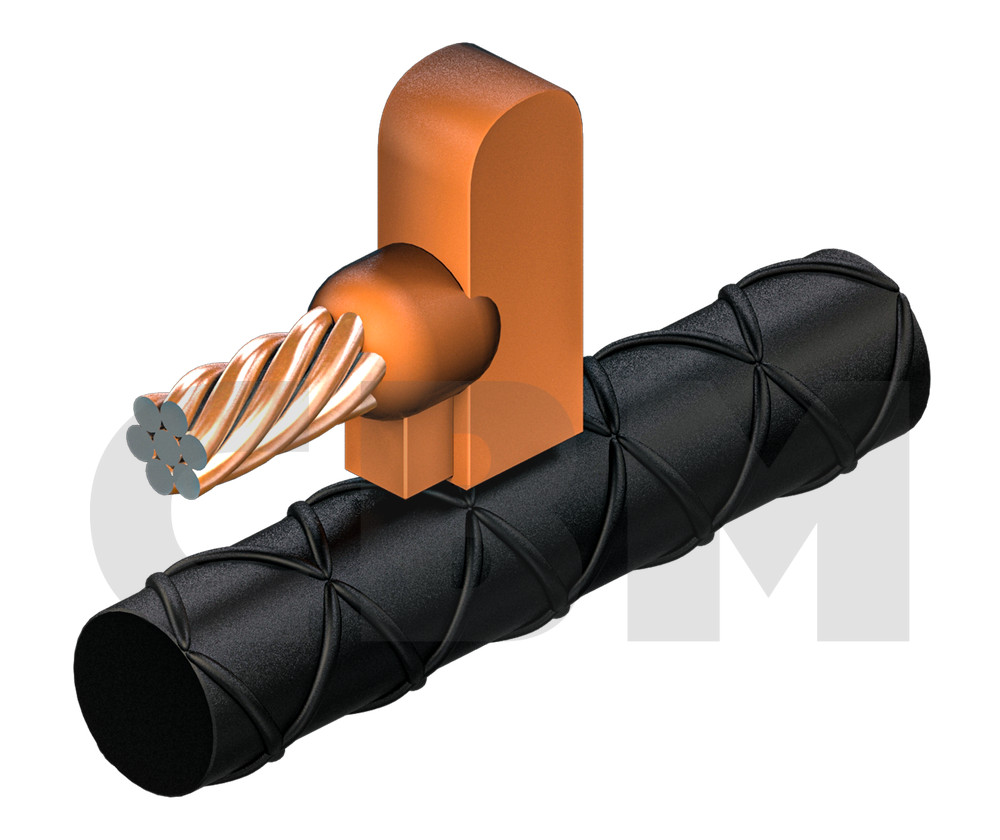

Wire/stranded wire to ribbed bar, group: C-DZ-F

Horizontal wire/stranded wire to horizontal ribbed bar, end point connection

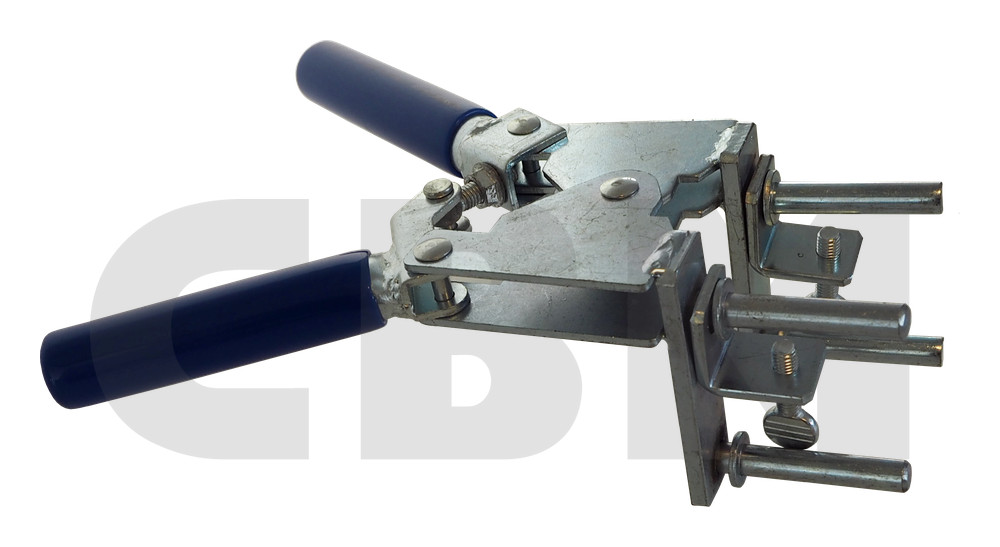

CBM Weld mould handle

The mould handle is used to clamp the graphite mould during exothermic welding.

Cat. no.	Type
CBM501	small mould handle
CBM505	large mould handle

Downloads

Data sheet: CBM Weld mould handle (PDF, opens in a new tab)

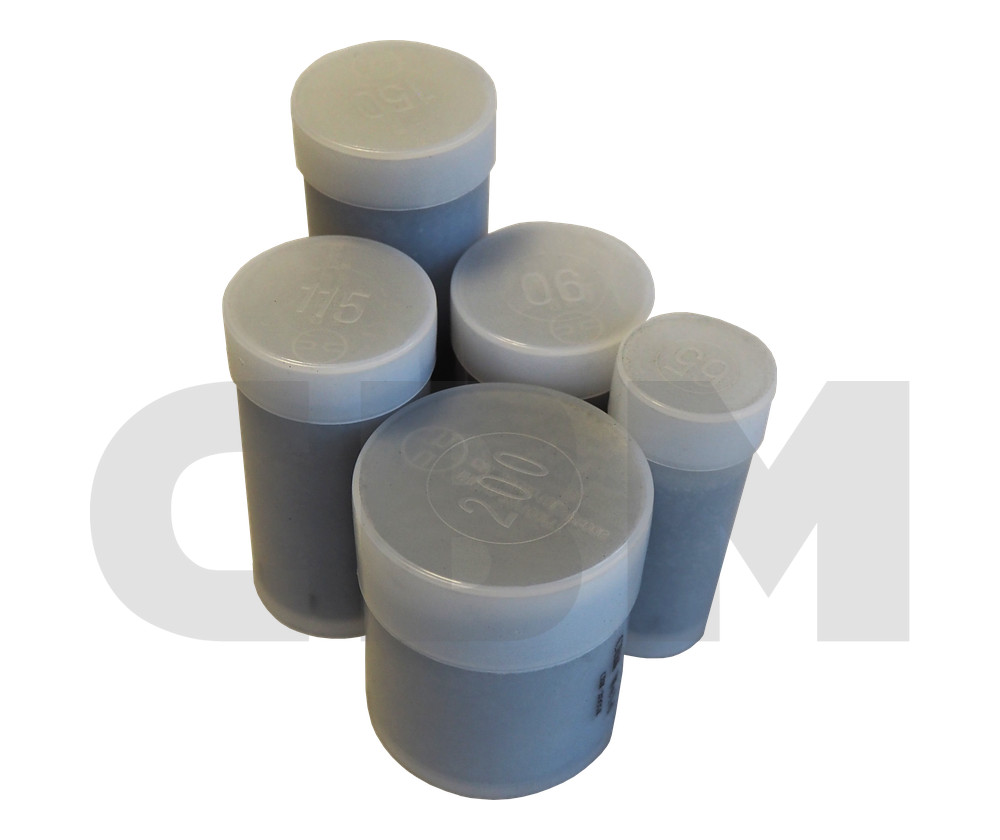

CBM Weld welding powders

Welding powder consisting of copper oxide and aluminium oxide, designed to join metal elements by an exothermic reaction. The exothermic reaction turns the powder into liquid metal, which flows down into the chamber with the metal elements. When the liquid mass cools, the metal elements are permanently joined by a copper sheath.

Cat. no.	Powder weight g
CBM45	45
CBM65	65
CBM90	90
CBM115	115
CBM150	150
CBM200	200
CBM250	250
CBM300	300

If powders of incorrect weight are used, the manufacturer accepts no liability for the quality of the connection or for damage to the mould.

Downloads

Data sheet: CBM Weld welding powders (PDF, opens in a new tab)

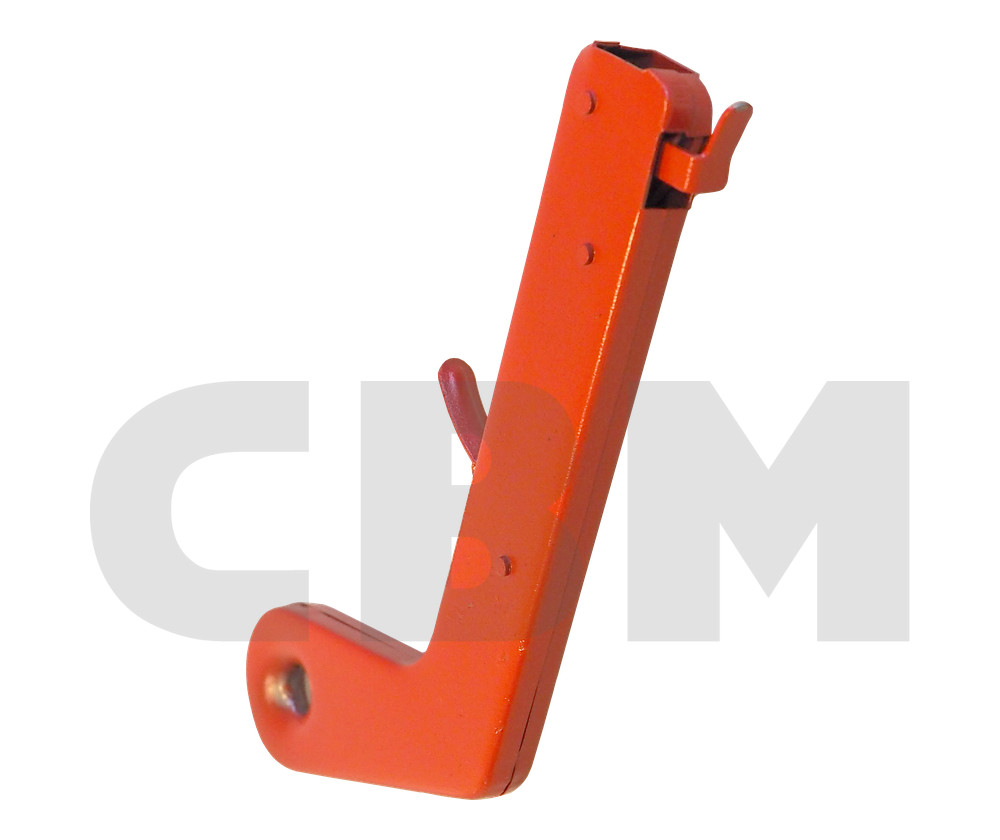

Spark igniter

The spark igniter is used to ignite the starting powder that initiates the exothermic reaction in the graphite mould.

Cat. no. CBM511

Downloads

Data sheet: Spark igniter (PDF, opens in a new tab)

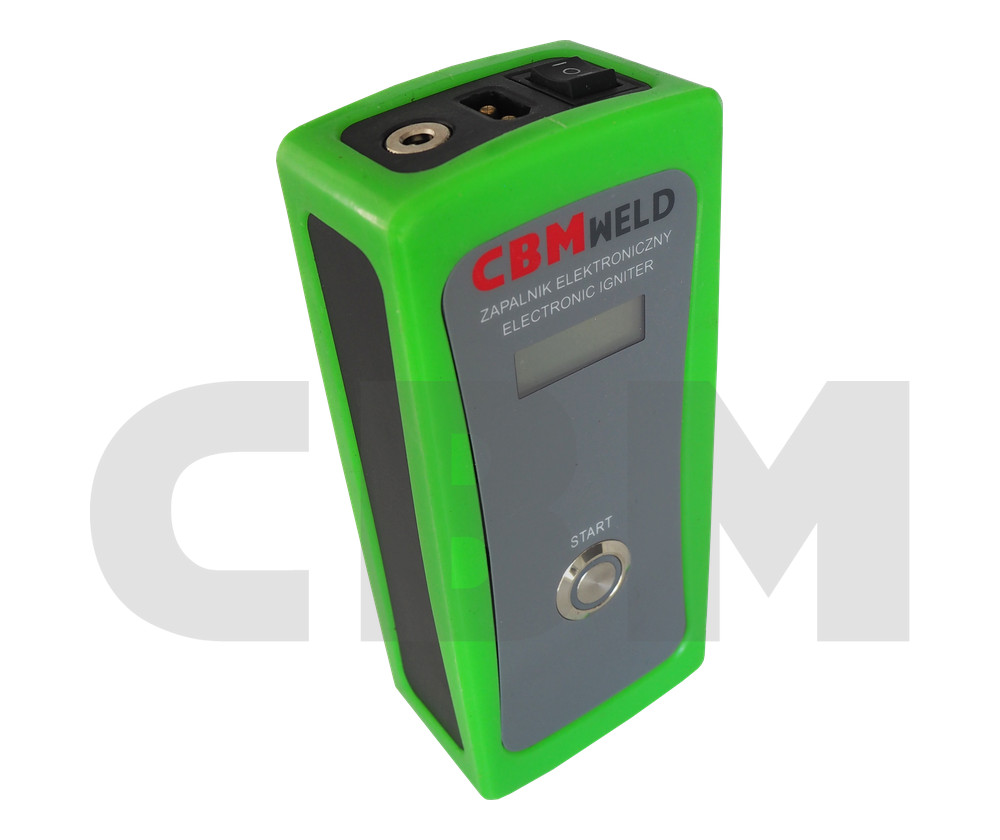

Electronic igniter

A device designed by CBM Technology for remote ignition of the CBM Weld welding powder in the graphite mould, without the need for a powder that initiates the exothermic process. The electronic igniter can be used instead of the spark igniter. Use the ignition electrode to initiate the exothermic reaction.

Cat. no. CBM512

Technical information
Start button	Model HBGQ19f-10E/G 36V/DC
LED display	The display shows the battery charge level in per cent
Charging plug port	INPUT AC100V-240V 1A
Power output port	5.5*2.1 mm 36 V DC
Power switch	MODEL KCD1-104 250V
Charger with cable	MODEL: SYB-168100
Input	AC100V-240V 50/60HZ
Output	DC 16.8V 1A

Downloads

Data sheet: Electronic igniter (PDF, opens in a new tab)

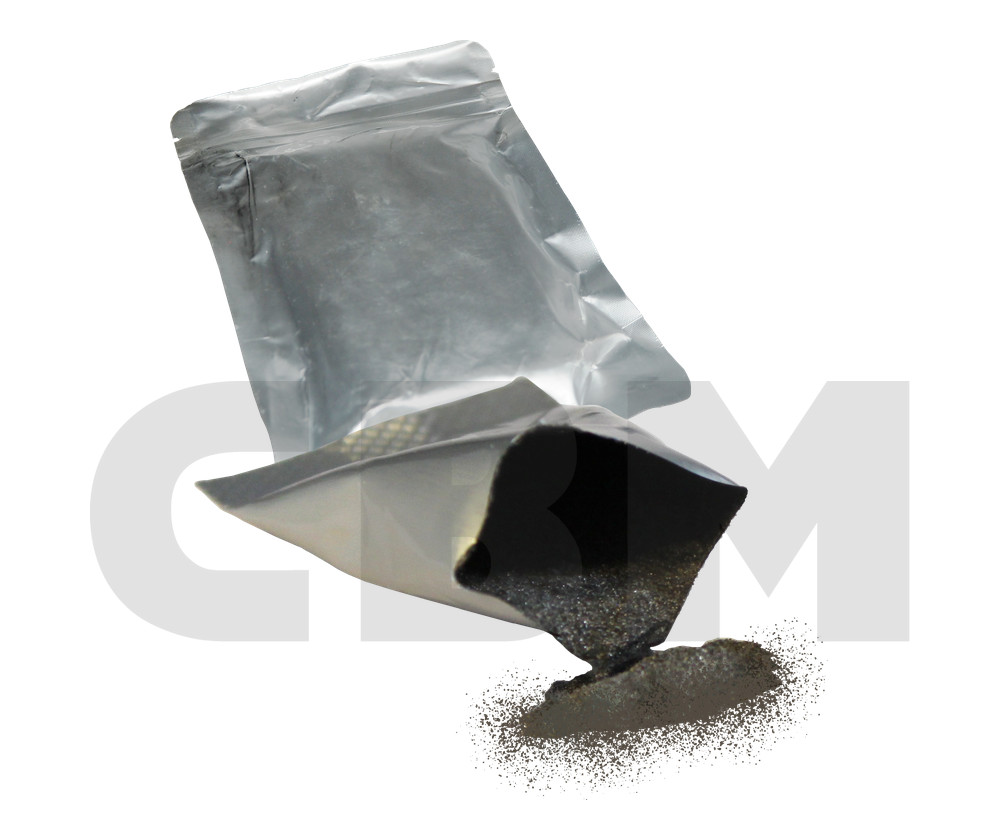

CBM Weld starter

CBM Weld starter is designed to initiate the exothermic reaction of the welding powder. To initiate the process, pour a small amount of starter (powder from the sachet) into the combustion chamber, then close the mould and pour the rest of the powder around the opening in the mould cover. Ignite the starter with the spark igniter.

Cat. no. CBM550

Downloads

Data sheet: CBM Weld starter (PDF, opens in a new tab)

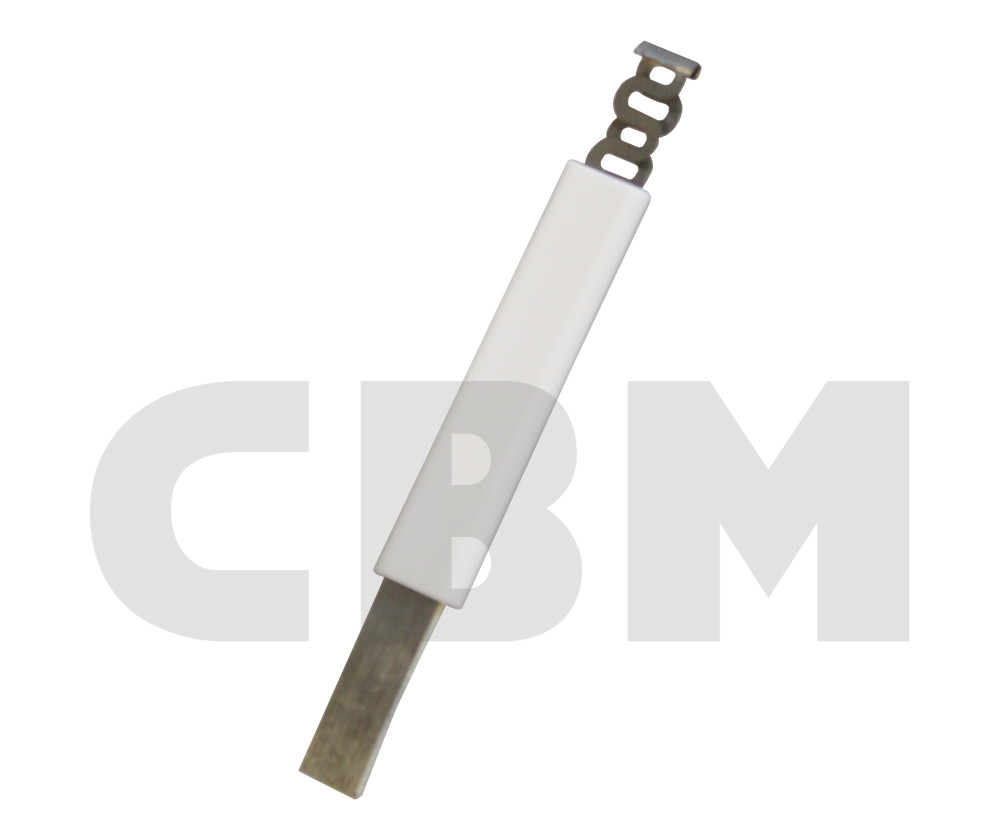

CBM Weld ignition electrode

The CBM Weld ignition electrode is designed to initiate the exothermic reaction of the welding powder. To initiate the process, insert the electrode into the igniter cable plug, then place the electrode in the opening of the graphite mould.

Cat. no. CBM513

Downloads

Data sheet: CBM Weld ignition electrode (PDF, opens in a new tab)

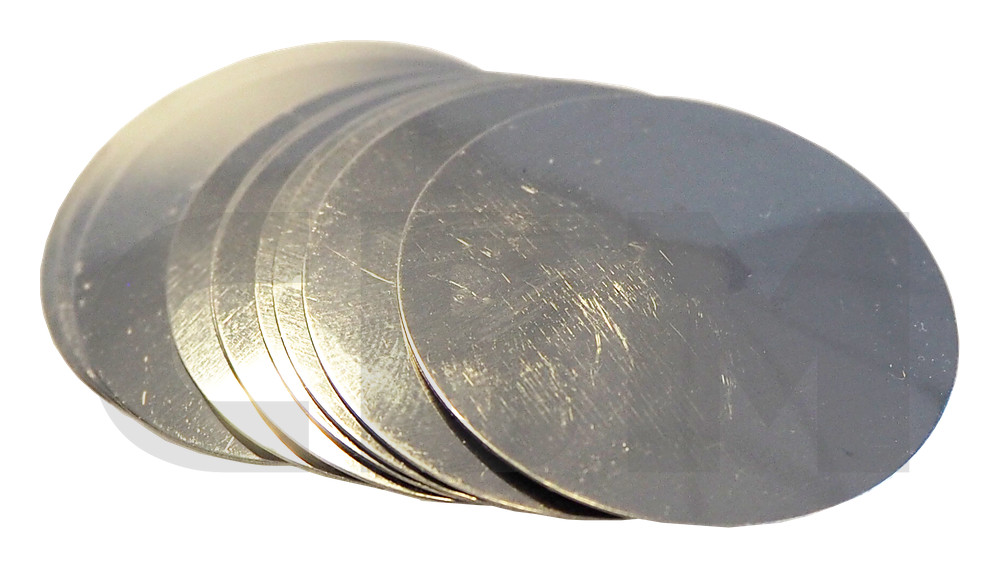

CBM Weld disc

The CBM Weld disc blocks the tap hole in the mould, through which the welding powder flows into the chamber with the elements to be welded once it has reached the correct temperature and melted the disc. Leaving the disc out of the mould or placing it incorrectly may result in a faulty weld and a sudden escape of molten metal from the mould.

Cat. no. CBM560

Downloads

Data sheet: CBM Weld disc (PDF, opens in a new tab)

The manufacturer reserves the right to change the product design without prior notice.
